Fiveo Black-Ops

Black-Ops M-Series Fuel Injectors Standard Length 2.5" U.S., European

$62.50

Fiveomotorsport introduces the "Black-Ops, M-Series" High-Performance, Flow-Matched Fuel Injectors (see complete details and specifications below)!

Black-Ops: STANDARD-length US/Euro, LS2, SRT, Hemi, Ecotec, Volvo T6, Genesis Coupe 2.0L, Nissan GT-R, 370Z, and many more

LIST PRICE INCLUDES: ONE (1) FUEL INJECTOR (please see photos and drop-down menu for connector options)

  • Available in flow-rates from 270cc to 1600cc/min (25 lbs to 150 lbs/hr) at 3 Bar.
  • Price shown is for a single injector with selected connector (see drop-down menu for pricing).
  • Order multiple injectors. - Always delivered in flow-matched sets with data sheet.
  • Please use drop-down menu to select flow-rate and electrical connector type.
  • LS2, Micro Sprint, SRT, Mini Cooper, Mercedes-Benz, BMW, etc.



After several years of R&D and after testing many different injector core/body configurations, Fiveomotorsport is releasing the new Black-Ops M-Series Fuel Injectors for sale to the automotive industry for street-performance, racing, and all high-performance vehicles.

  • Manufactured in the USA
  • ULTRA FAST RESPONSE TIMES
  • CONSISTENT EVEN AT VERY LOW PULSE WIDTHS
  • LOW DEAD-TIMES ACROSS THE OPERATING VOLTAGE RANGE
  • FREE ELECTRICAL ADAPTERS INCLUDED (see menu for options)
  • COMPATIBLE WITH E85 and ALL PERFORMANCE FUELS
  • ALL STAINLESS STEEL INTERNAL PARTS



Built with a robust internal coil design that delivers ultra-fast response time, great idle and lots of high-end power. Extremely reliable up to 95% duty cycle (note: if you are running above 90% duty cycle, it is better to move up to a higher-flowing fuel injector). Higher flow-rates available up to 1600cc/min.

Similar injectors have been used as OE injectors proving their durability and consistency -- partly due to the new larger insulated coil.

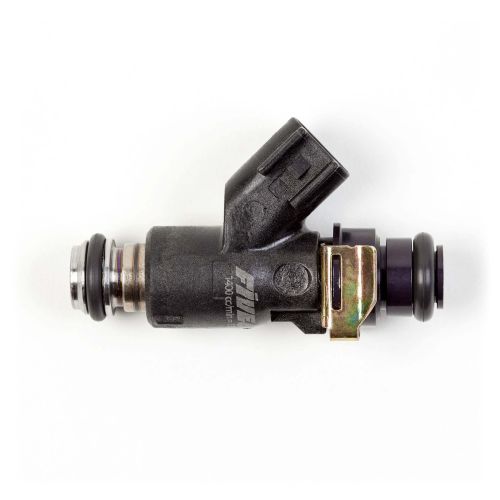

Notice the 17 mm body diameter (see photos) - approximately 2 mm larger than a standard Bosch EV14 injector.

Our custom-manufactured Black-Ops injectors bring ultra-fast minimum pulse widths never seen before in modern Bosch EV14/EV6-style high-impedance fuel injectors (Quicker than even the best low-impedance injectors).

Choose your ELECTRICAL CONNECTOR ADAPTER TYPE—included with each injector. SEE PHOTOS.

Fiveomotorsport is able to guarantee flow-matched sets from 2 to 12 injectors matched both statically and dynamically to within 0.5-1.0%.

Fiveomotorsport's new single-hole w/diffuser plate fuel nozzle - WATCH VIDEO.
This new nozzle guarantees a tight cone spray throughout the rpm range. And where it gets really good is at high volume/high rpm and high pressure at boost.
Testing has been completed. Check out the video of the Black-Ops M80 operating at 7,200 rpm and a pulse width of only 2 ms.
Even with the simulated conditions you will still see the super-fine droplets our new single-hole nozzle produces.

This injector can provide a smooth idle quality on engines running all types of performance fuel.

Fuel Injector Specifications:
Fuel Delivery:  Ball valve (for maximum fuel atomization).
Coil Resistance: 12.5 OHMS (high-impedance)
Flow-Matched sets are delivered in flow rates at or very near the advertised flow rate (you will get a set that is exactly flow-matched to within a best-in-the-business 0.5-1.0% -- guaranteed).
Minimum Pulse Width: 1.4 ms

  • With your order you will receive a complete flow-data-sheet showing actual tested flow rates for your individual injectors (see photos)
  • Data sheet includes static flow data at 3 Bar (43.5 psi), 3.5 Bar (50.8 psi) and 4 Bar (58.0 psi). Black-Ops injectors can operate at 100+ psi.
  • Data sheet includes dynamic flow data at 3 Bar at 6000 rpm and 5.0 ms and idle data at 800 rpm and 1.5 ms
  • Data sheet includes full latency (dead-time) table from 8 volts to 18 volts at 3 Bar

Injector Dimensions:

Electrical connector type: USCAR
Overall length: 62 mm - 2.5 in
Body Diameter: 17 mm - 0.70 in
O-ring to o-ring, on center: 54 mm - 2.13 in
Upper o-ring diameter: 14 mm - 0.55 in
Lower o-ring diameter: 14 mm - 0.55 in
O-ring/seal material: Viton

*By special request, this injector can be delivered in the X12 configuration with o-ring to o-ring length of 59.5mm and overall length of 66.5mm.  Please make a note in the comments section when ordering.

More Information
Manufacturer Fiveo Black-Ops
OEM or Aftermarket No
Part Number Standard US/Euro, LS2, Cad CTS-V, SRT Hemi Ecotec, Volvo T6, Genesis Coupe 2.0L
Year(s) 2016
Make CADILLAC, CHEVROLET, DODGE, HYUNDAI
Model CALIBER, CHALLENGER, CHARGER, CORVETTE, CTS, GENESIS COUPE, MAGNUM, NEON
Engine 2.0T PREMIUM, L4, 2.0L, D, Turbo, GAS, 2.0T R-SPEC, L4, 2.0L, D, Turbo, GAS, 2.0T TRACK, L4, 2.0L, D, Turbo, GAS, 2.0T, L4, 2.0L, D, Turbo, GAS, SRT-4, L4, 2.4L, F, Turbo, GAS, SRT-4, L4, 2.4L, S, Turbo, GAS, SRT-4, L4, 2.4L, Turbo, GAS, SRT8, V8, 6.1L, 3, GAS, SRT8, V8, 6.1L, W, GAS, V, V8, 5.7L, S, GAS, V, V8, 6.0L, U, GAS, V8, 6.0L, U, GAS
