Black-Ops M-Series, Honda, Acura, J- & K-Series, 2 1/2 in.

Fiveo Racing
Part Number: Black-Ops: K-Series, J-Series, HONDA
High Performance
$65.00

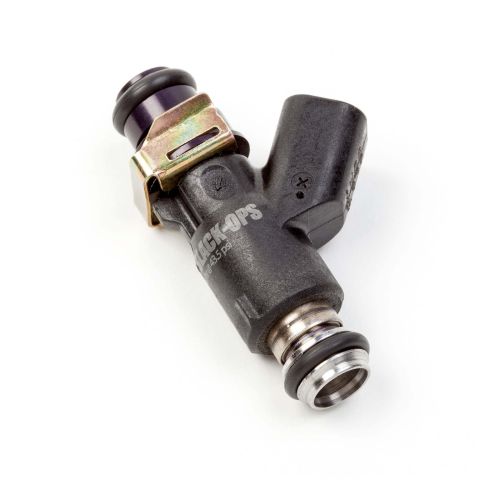

FIVEOMOTORSPORT introduces the BLACK-OPS FUEL INJECTOR - Made in U.S.A.

Use for highly modified engines


Honda, Acura
K20, K24, - ALL

Acura
CL J32 - ALL (See B-Series LONG fit, 1997-1999 J30)
MDX, J35, J37 - ALL
RL, J35 - ALL
TL, J32, J35, - 2002-Up (See B-Series LONG fit, 1999-2001 J32)

Honda
Accord, J30, - 2003-Up (See B-Series LONG fit, 1998-2002 J30)
Odyssey, J35, - 2005-Up
Pilot, J35, - 2005-Up
S2000, F22C1, 2006-Up

Nissan GTR

Hyundai Genesis Coupe

  • Use with gasoline, ethanol, E85 and other race and street performance type fuels

  • Complete tuning data sheet included with all matched sets



LIST PRICE INCLUDES: ONE (1) FUEL INJECTOR WITH ELECTRICAL CONNECTOR Adapter (see drop-down menu for options)

  •  All Black-Ops fuel injectors are individually tested, balanced and delivered in flow-matched sets.
  • A larger fuel pump may be needed to feed higher flowing fuel injectors:
    • Fiveo Fuel Pump 340lph: Civic 1988-2000, Up to 700 turbo hp

    • Fiveo Fuel Pump Avenger 325lph 2001-2014, Up to 700 turbo hp

    • Weldon 1100 Pump/2040 Regulator: Use for up to 1,500 hp



Fuel Injector Specifications:

Saturated-type
All stainless steel internal construction
Over-sized electrical coil
Single-hole disc/ball fuel nozzle
Minimum Pulse Width: 1.4 ms, 450cc; 1.6 ms, 1600cc
Dynamic flow tolerance: balanced to within 1.5%
Consistent at very low pulse width - Minimum pulse-width 1.4 ms
Min./max pressure: 32/116 psi

Coil Resistance: 12.5 Ohms
Voltage: 8-15 volts, Nominal 13.5 volts
Amperage: 1.0 amps



Injector Dimensions:

Electrical connector type: US CAR
Overall length: 62 mm - 2.5 in
Body Diameter: 17 mm - 0.70 in
O-ring to o-ring, on center: 54.5 mm - 2.13 in
Upper o-ring diameter: 14 mm - 0.55 in
Lower o-ring diameter: 14 mm - 0.55 in
O-ring/seal material: Viton

More Information
Manufacturer Fiveo Racing
OEM or Aftermarket High Performance
Part Number Black-Ops: K-Series, J-Series, HONDA
Year(s) 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Make ACURA, HONDA
Model CIVIC, CR-V, CSX, RDX, RSX, TSX
Engine L4, 2.0L, K20A3, GAS, L4, 2.0L, K20Z2, GAS, L4, 2.3L, K23A1, Turbo, GAS, L4, 2.4L, K24A2, GAS, L4, 2.4L, K24Z3, GAS, LX, L4, 2.4L, K24A1, GAS, MUGEN SI, L4, 2.0L, K20Z3, GAS, PREMIUM, L4, 2.0L, K20Z2, GAS, S, L4, 2.0L, K20A2, GAS, S, L4, 2.0L, K20Z1, GAS, SI, L4, 2.0L, K20A3, GAS, SI, L4, 2.0L, K20Z3, GAS, SIR, L4, 2.0L, K20A3, GAS, TOURING, L4, 2.0L, K20Z2, GAS, TYPE-S, L4, 2.0L, K20Z1, GAS, TYPE-S, L4, 2.0L, K20Z3, GAS, VALUE PACKAGE, L4, 1.7L, D17A1, GAS
