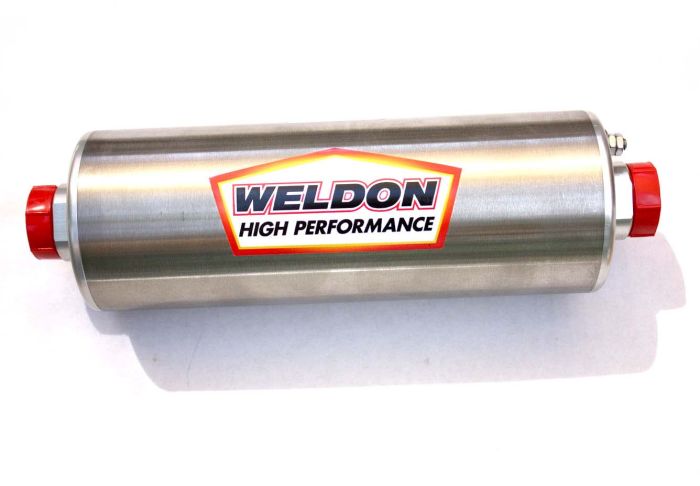

WELDON 1100-A FLOW THROUGH 510 LPH/135 GPH - INLINE FUEL PUMP

$429.50

1100-A Flow Through Fuel Pump

 1100-A Flow Through Fuel Pump Perfect Fuel Pump for Higher Horsepower Street Rods, Muscle Cars, Imports and Extreme Off-Road Vehicles -- Anything that requires the maximum fuel flow with quiet and consistent fuel delivery!



Maximum HP:
1100 hp Inj/1300 hp Carb

CAPACITY/Range:
135 GPH/510 LPH/0-95 PSI

Features

  • Extremely quiet
  • Smooth, precise fuel delivery
  • Extremely low current draw
  • Self Priming
    - Pump may be mounted above fuel cell
    vertical or horizontal mount
  • All internal wear components are 100% metallic
    No plastics or composite materials are used in the 1100-A pump. This results in the longest lasting, highest quality most durable flow through pump available.
  • The housing is made from corrosion resistant 304 brushed stainless steel
  • Mil-Spec Clear anodized billet end caps with No-Leak seals and stainless steel electrical connectors
  • -10 inlet and outlet with leak free o-ring ports
  • 6.25 lbs
  • Two stainless steel T-bolt style clamps included with each pump
  • Long life, continuous duty

    Current Fluids
    Compatible with Gasoline Only (not compatible with alcohol / ethanol based fuels)

    Comments
    Requires appropriate bypass regulator - A2040 (See photo).
    a -8 return line is recommended


More Information
Manufacturer WELDON
OEM or Aftermarket No
Part Number WELDON 1100-A, 135 GPH/510 LPH, Fuel Pump
