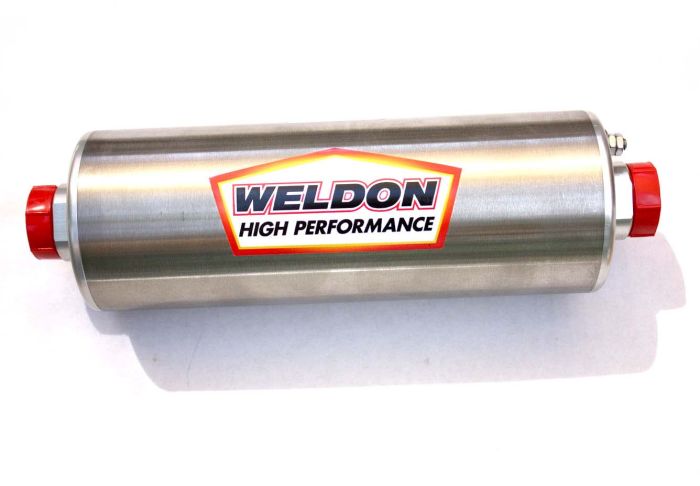

WELDON 1100-A FLOW THROUGH 510 LPH/135 GPH - INLINE FUEL PUMP

Genuine Weldon 1100-A Flow Through Fuel Pump

Perfect Fuel Pump for Higher Horsepower Street Rods, Muscle Cars, Imports and Extreme Off-Road Vehicles -- Anything that requires the maximum fuel flow with quiet and consistent fuel delivery!

Maximum HP:
1100 hp Inj/1300 hp Carb

CAPACITY/Range:
135 GPH/510 LPH/0-95 PSI

Features

• Extremely quiet
• Smooth, precise fuel delivery
• Extremely low current draw
• Self Priming
• Pump may be mounted above fuel cell
• Vertical or horizontal mount
• All internal wear components are 100% metallic
• No plastics or composite materials are used in the 1100-A pump. This results in the longest lasting, highest quality most durable flow through pump available.
• The housing is made from corrosion resistant 304 brushed stainless steel
• Mil-Spec Clear anodized billet end caps with No-Leak seals and stainless steel electrical connectors
• 10 inlet and outlet with leak free o-ring ports
• 6.25 lbs
• Two stainless steel T-bolt style clamps included with each pump
• Long life, continuous duty

Current Fluids
Compatible with Gasoline Only (not compatible with alcohol / ethanol based fuels)

Comments
Requires appropriate bypass regulator such as Weldon A2040 (See photo).
a -8 return line is recommended
