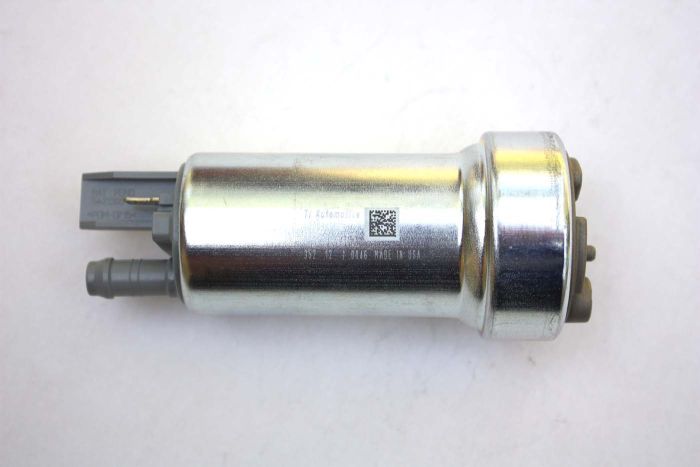

WALBRO F90000262: 400 LPH, DCSS Twin Turbine Pump/KIT

WALBRO 400LPH IN-TANK FUEL PUMP F90000262

• E85/Ethanol Compatible
• Includes IN-TANK Filter w/fit kit (see photo)

The new 39/50 DCSS pump has been designed around the proven 39mm armature (''motor'') that has been used for many years, Coupled with the proven armature are two sets of turbine blades set in parallel on a single impeller shaft. This design allow fuel to pass through two high pressure pumping channels delivering fuel in a manner to work with the high pressure demand of today's direct injection system.

Technical Pump Specifications: Rated for E85/Ethanol
Overall pump length: 121mm
Main Housing Dia.: 39mm
Lower Housing Dia.: 50mm
Fuel inlet Dia.: 11mm OD
Fuel Outlet Dia.: 11mm OD
Flow rate: 400LPH @ 40PSI
Test Voltage: 13.5 Volts
