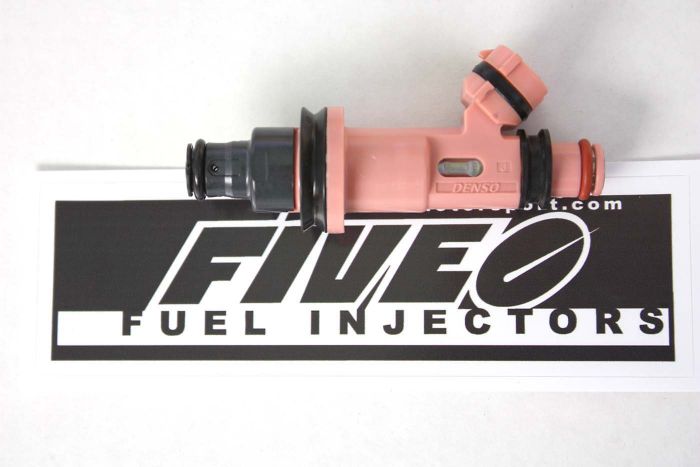

LEXUS 1UZ, 5VZ, 1MZ, 2JZ, 3UZ, Air-Assist Injector

• LEXUS IUZ, 5VZ, 1MZ, 2JZ, 3UZ, V-6; V-8 TURBOCHARGED, SUPERCHARGED; MODIFIED, Air-Assist Fuel Injectors


• See the drop-down menu for flow-rate options

• LIST PRICE INCLUDES: ONE (1) FUEL INJECTOR w/O-RINGS/SEALS

2 Fuel Pumps available depending on horsepower output, use Walbro GSS342 (255LPH) or Fiveo Avenger 00042 (340LPH)

• https://www.fiveomotorsport.com/walbro-in-tank-fuel-pump-gss342
• https://www.fiveomotorsport.com/fvo342-340lph-fuel-pump

Flow matched sets:
P/N: 10295-Air Assist
Will maintain consistency to within 1%
Excellent pulse width and predictability down to 1.7 ms for easy tuning and accurate compensations.
Length: 74 mm, overall, 64 mm o-ring to o-ring
Body Diameter: 24.3 mm
O-rings: Top - 12 mm OD; Bottom - 12 mm OD
Electrical connector type: Sumitomo

FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.

Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
The finished injectors are then flowed and inscribed with a control number.
Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.

FLOW CHART: Each set is sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.

SPECIAL NOTE TO OUR E85 USERS:
Ethanol based fuels tend to "dry" the fuel injector outlet orifices.
Users/tuners should be made aware that this may cause a "sticking" problem in fuel injectors that sit idle for a prolonged period of time.
It is suggested for applications running high ethanol content based fuels, to periodically incorporate into their fuel-system-maintenance a drop of light petroleum-based lubricant for each fuel injector.
This is also considered to be good maintenance, but not essential, for stainless steel based (Black-Ops Series) fuel injectors.
It should also be noted that for optimum performance the entire fuel system should be made up of ethanol approved materials including all fuel lines/fuel pump/fuel filter, etc.
