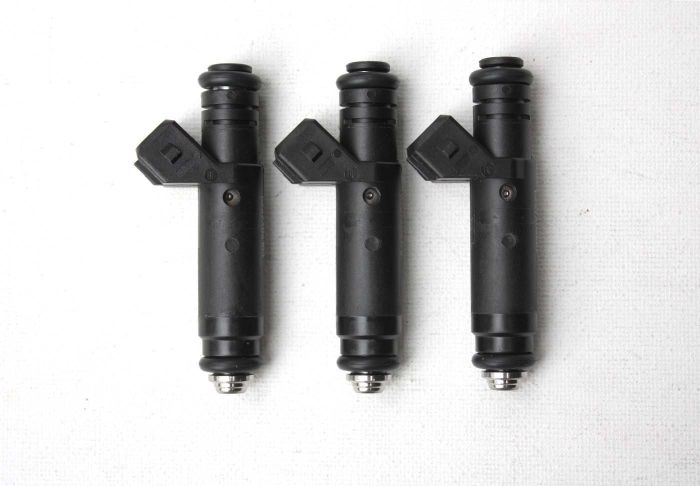

Seadoo 60lb Siemens Flow-Matched Fuel Injector Sets FI114961

Siemens Fiveo
Part Number: 107961 Seadoo
Resistance: 12.5 Ohms
High Performance
$66.90 (USD)
Subtotal: $66.90

BRAND NEW SIEMENS 60LBS/HR FUEL INJECTORS.

  • New generation, Design III fuel injectors
  • All are available in flow-matched sets for easy tuning
  • New 14mm orings are supplied for installation

Our injectors are custom-manufactured from brand new U.S. and German made fuel injectors in large-quantity batches to achieve the highest quality product.
The resulting sets are all-fuels rated; including gasoline (MTBE), and E-85. The finished injectors are then flowed and inscribed with a control number.
Data is recorded for each injector. They are then placed in matched sets ready for shipping.
You don't get this kind of technology from an OE injector.

FLOW CHART: Each set is sold with a complete flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR. As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle. Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.


Users of E85:
If you know your engine will not be started for weeks at a time may result in sticking fuel injectors. The solution is to remove each injector and add a drop of petroleum-based lubricate, 3 in 1 Oil works great, in to the top of each fuel injector.
Also check and lube each o-ring.
You can then reinstall the injectors or store them upright until the next time you are ready to run your engine.



Injector type: Saturated
Injector Body Design: Metal and composite plastic
Fuel Delivery: 4-hole convex disc
Spray angle: 25 degrees - use for multi-valve engines.
Length: 3 inches, 74 mm
Diameter: 16 mm
O-rings: Top and bottom, 14.5 mm
Resistance: 12.5 Ohms

(All fuel injector specifications meet or exceed the manufacturer's specification standard).

More Information
Manufacturer Siemens Fiveo
OEM or Aftermarket High Performance
Impedance 12.5 Ohms
Part Number 107961 Seadoo
Year(s) 2016
