OEM, CNG, NEW LUCAS-USA, Chevrolet, Ford, Dodge, GMC
Part Number:
01D166B, 110R-000086
Resistance:
4.5 Ohms
Connector Type:
Jetronic (EV1)
Country Of Manufacture:
United States
OEM
$119.95 (USD)

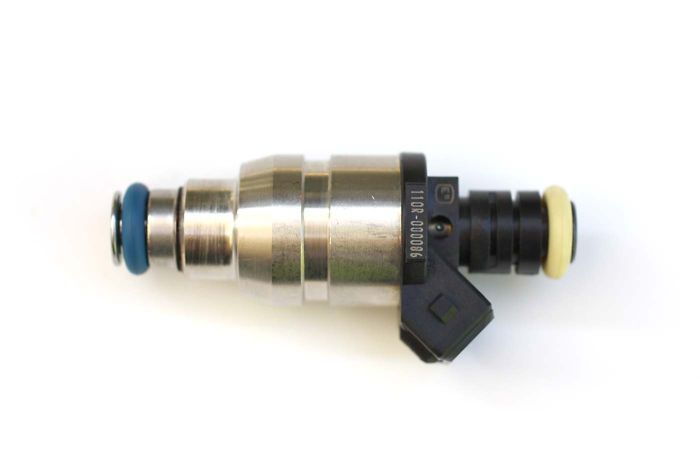

DIRECT REPLACEMENT FOR ALL FORD AND DODGE TRUCKS; also use for CNG conversions and conversion replacements.
- LUCAS-USA CNG, Fuel Injectors
- Ford 4.6L, 5.4L CNG, Dodge Ram Sportman 5.2L; V-8 CNG
- Manufactured in the U.S.A.
- Lucas, 01D166B 1670cc
- CNG, 160 LB Compressed Natural Gas fuel injector
List price includes a single, 1 (one) fuel injector
Replaces all the following Bosch part numbers:
- 0280150525
- 0280150563
- 0280150837
- 0280150838
- 0280150839
- 0280150842
- 0280150843
- 0280150846
This fuel injector is approved for use with CNG and E85 application. As well as other alcohol-based fuels
Special Note (for OEM replacement): Use this injector in your Ford or Dodge/Chrysler CNG based V-8.
Some aftermarket applications will require replacing the fuel rail.
This injector is a low-resistance/peak and hold type and may require a ballast resistor for some applications.
FUEL INJECTOR SPECIFICATIONS:
Flow rate, 3 BAR/43.5 PSI; 1670 cc/min - 160 lbs/hr - 1,235 g/min
- Resistance: 4.5 Ohms
- Overall length: 75 mm, 3.0 in
- O-ring to o-ring: 68 mm, 2.67 in
- Body Diameter: 24 mm, 0.95 in
- O-rings: Viton, upper, lower; 14.5 mm OD
| OEM or Aftermarket | OEM |
|---|---|
| Connector Type | Jetronic (EV1) |
| Impedance | 4.5 Ohms |
| Part Number | 01D166B, 110R-000086 |
| Year(s) | 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 |
| Make | CHEVROLET, CHRYSLER, DODGE, FORD, GMC, RAM |
| Model | B250, B2500, B350, B3500, CROWN VICTORIA, DAKOTA, E SUPER DUTY, E-250 ECONOLINE, E-350 ECONOLINE, F-150, F-150 HERITAGE, F-250, RAM 1500, RAM 2500, RAM 2500 VAN, RAM 3500 VAN |
| Engine | LX, V8, 4.6L, 9, CNG, POLICE INTERCEPTOR, V8, 4.6L, 9, CNG, S, V8, 4.6L, 9, CNG, SPORTSMAN, V8, 5.2L, T, CNG, SUPER WAGON, V8, 5.4L, M, CNG, SUPER, V8, 5.4L, M, CNG, V8, 4.6L, 9, CNG, V8, 5.2L, T, CNG, V8, 5.4L, M, CNG |
