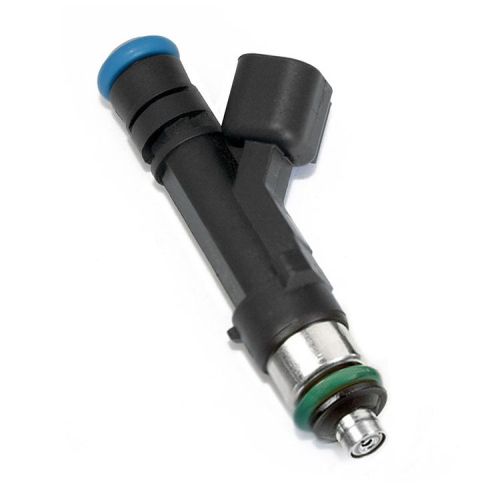

Jeep Modified Stroker 4.6/4.7; 30lb, 36lb - Matched

EV14-Style flow-matched sets of 6 fuel injectors

• List Price Includes: Complete set - 6 fuel injector delivered with tuning specifications and data

Flow-rate Options:

• 30lb - 310cc
• 36lb - 380cc

FLOW CHART: Each set is sold with a complete flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR. As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle. Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.

SPECIAL NOTE TO OUR E85 USERS:
Ethanol tends to "dry" the orifices. Customers should be made aware that this can be a problem with some fuel injectors. And may cause a "sticking" problem. It is suggested that a tank of 91-98 octane gasoline be run to every 5 or 6 tanks of Ethanol to re-lube not only the fuel injectors, but the entire fuel component system. This is also considered to be good maintenance, but not essential, for stainless steel based fuel injectors.

Injector Body Design: EV14 Style, black composite plastic.

Injector type:saturated

Fuel Nozzle: Multi-hole for maximum atomization

Flow rates shown at 43.5 PSIg:  30lbs/310cc, 36lbs/380cc

Sample dead time (latency): 0.85 ms at 14 volts

Electrical connector type: US-CAR

Length: 3 inches, 74 mm

Body Diameter: 19 mm

Oring to o-ring fit: 60 mm

Oring material: Viton, Top and bottom, 14 mm

Resistance: 14.5 Ohms

(All fuel injector specifications meet or exceed the manufacturer's specification standard).
