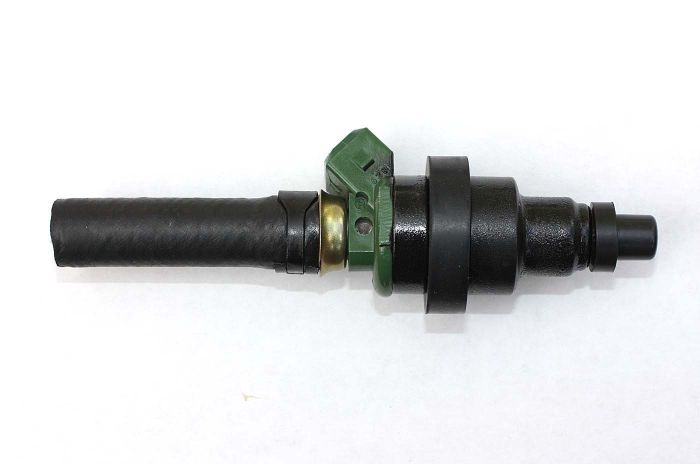

New Hose-Type injectors; Jaguar V12, Porsche, SAAB, VW
Fiveo Motorsport
Part Number:
10399H435, 0280150045, 0280150035, 552-13105
Flow Rate:
Please select an option below
Resistance:
2.5 OHMS
Connector Type:
Jetronic (EV1)
OEM
$114.50 (USD)
USE FOR OEM REPLACEMENT
THIS IS A STOCK, UPGRADED FUEL INJECTOR FOR YOUR UNMODIFIED ENGINE.
THESE INJECTORS ARE COMPATIBLE WITH ALL STOCK CONTROL UNITS.
Fits all stock equipment
- LIST PRICE includes a single (1) fuel injector with hose, clamp, rubber seals
Use this upgraded fuel injector in place of the following part numbers.
Replaces Bosch P/N: 0280150007, 0280150014, 0280150035, 0280150045, 0280150019, 0280150020, 0280150038, 0280150016
- You receive fuel injectors ready to install in your OEM engine
- All new Viton rubber seals Included for installation
- Fuel injectors are flow-balanced and matched
Static Flow Rate: 435 cc/min @ 3 Bar (42 lbs/hr @ 43.5 psi)
Coil Resistance: 2.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Amperage: 1.0 Amps
Latency (dead time): 0.455 ms at 14 volts - Complete latency table included with each set of injectors.
Excellent fuel atomization for medium compression, single- and multi-valve engines.
Injector Dimensions:
Overall length: 3 in./77 mm
O-ring to o-ring: 2.6 in./66 mm
Body Diameter: .95 in./24 mm
Will not require more than 1% trim
Pressure: Min. 36 PSI (2.5 bar), Max. 101 PSI (7 bar)
Surface finish: plastic top, metal bodies are painted black to prevent oxidation
Manufacturer | Fiveo Motorsport |
---|---|
OEM or Aftermarket | OEM |
Connector Type | Jetronic (EV1) |
Flow Rate | Please select an option below |
Flow Rate | 435 cc/min @ 3 Bar |
Impedance | 2.5 OHMS |
Part Number | 10399H435, 0280150045, 0280150035, 552-13105 |
Make | JAGUAR, PORSCHE, SAAB, VOLKSWAGEN |
