1600 cc/min, Honda, Acura, VTEC, Peak & Hold, E85 Ready
Custom Fiveo
Part Number:
A1600B Pigtails, 1600cc Fue Injector
Flow Rate:
Please select an option below
Resistance:
2.5 Ohms
Connector Type:
Jetronic (EV1)
High Performance
$125.50 (USD)

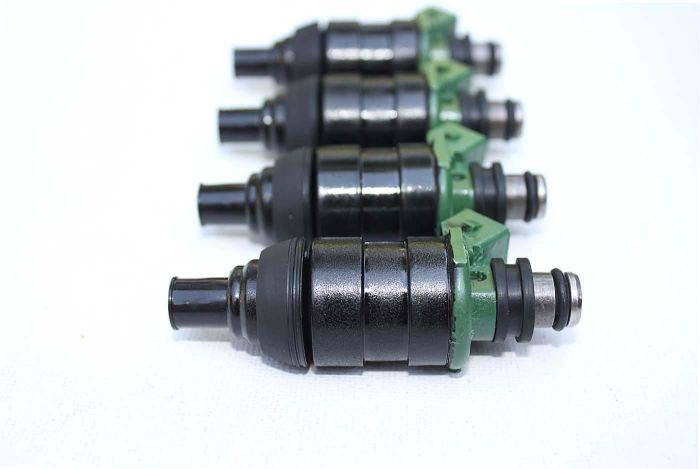

Fiveo "Asphalt Series" high performance 1600cc/min, low impedance fuel injector.
- Use for B-Series, D15 and D16 - 4 cylinder engines
- LIST PRICE INCLUDES ONE (1) FUEL INJECTOR & ONE (1) Pigtail
- Multiple injectors ordered are delivered in flow-matched sets
- Complete with all o-rings and rubber grommets
FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product. Our injectors are all-fuels rated; including gasoline (MTBE), and E-85. The finished injectors are then flowed and inscribed with a control number. Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.
FLOW CHART: Each set is sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR. As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle. Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.
SPECIAL NOTE TO OUR E85 USERS:
Ethanol based fuels tend to "dry" the fuel injector outlet orifices. Customers should be made aware that this may cause a "sticking" problem in fuel injectors that sit idle for a prolonged period of time. It is suggested for applications running high ethanol content based fuels, to periodically incorporate into their fuel-system-maintenance a drop of light petroleum-based lubricant for each fuel injector. This is also considered to be good maintenance, but not essential, for stainless steel based (Black-Ops Series) fuel injectors. It should also be noted that for optimum performance the entire fuel system should be made up of ethanol approved materials including all fuel lines/fuel pump/fuel filter, etc.
Fitment: ACURA/Honda 4 cylinder modified
(Engine codes: B-Series, D15 and D16).
Asphalt Series
Flow Rate: 1600cc/min at 3 BAR
Flow Rate: 154 lbs/hr at 43.5 PSI
Resistance: 2.5 Ohms (low impedance)
Voltage: 8-15 Volts, Nominal 13.5 Volts
Amperage: 1.0 Amps
Excellent fuel atomization for medium compression, single-and multi-valve engines.
Will not require more than 1% trim
Pressure: Min. 36 PSI (2.5 bar), Max. 101 PSI (7 bar)
Surface finish: black metal body with green top
Easy tuning with supplied data: latency values/voltage compensations
Manufacturer | Custom Fiveo |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | Jetronic (EV1) |
Flow Rate | Please select an option below |
Impedance | 2.5 Ohms |
Part Number | A1600B Pigtails, 1600cc Fue Injector |
Make | HONDA |
Model | CIVIC, CIVIC DEL SOL |
Engine | 1500 DX, L4, 1.5L, GAS, 1500 SI, L4, 1.5L, GAS, 4WD, L4, 1.6L, D16A6, GAS, CRX SI, L4, 1.5L, GAS, CX, L4, 1.5L, D15B8, GAS, CX, L4, 1.5L, GAS, CX, L4, 1.6L, D16Y7, GAS, DX, L4, 1.5L, D15B2, GAS, DX, L4, 1.5L, D15B7, GAS, DX, L4, 1.6L, D16Y7, GAS, EX, L4, 1.6L, D16A6, GAS, EX, L4, 1.6L, D16Y8, GAS, EX, L4, 1.6L, D16Z6, GAS, HX, L4, 1.6L, D16Y5, GAS, L4, 1.5L, GAS, LX, L4, 1.5L, D15B2, GAS, LX, L4, 1.5L, D15B7, GAS, LX, L4, 1.6L, D16Y7, GAS, S, L4, 1.5L, D15B7, GAS, S, L4, 1.6L, D16Y7, GAS, SE, L4, 1.5L, GAS, SI, L4, 1.6L, B16A2, GAS, SI, L4, 1.6L, D16A6, GAS, SI, L4, 1.6L, D16Y8, GAS, SI, L4, 1.6L, D16Z6, GAS, VALUE PACKAGE, L4, 1.6L, D16Y7, GAS, VTEC, L4, 1.6L, B16A2, GAS, VTEC, L4, 1.6L, B16A3, GAS, VX, L4, 1.5L, D15Z1, GAS |
