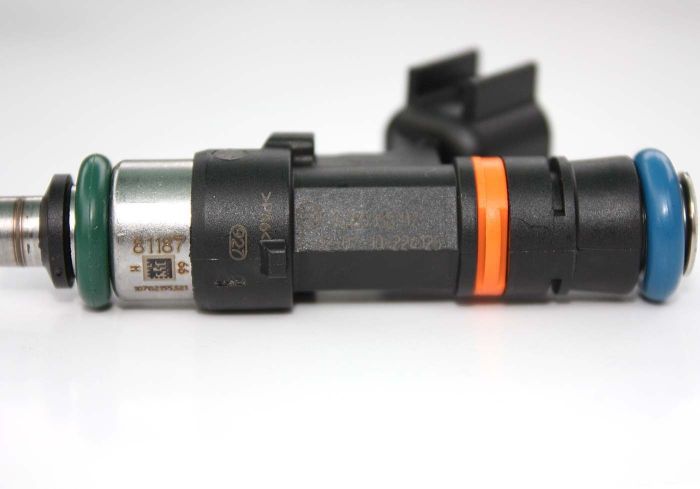

Ford-Racing, G302 Fuel Injector

Genuine EV-14-style Injector-part number FORD G302

• List prices include one (1) fuel injector
• 50 lbs/hr @ 43.5 psi (525 cc/min @ 3 BAR)

Guaranteed flow-matched to within 2%

• Wheel-horsepower ratings for naturally aspirated engines running 93 octane GAS:
• L4: 320 hp

• V-6, L6: 470 hp

• V-8: 637 hp

• V-10: 733 hp


The fuel delivery is from a 6-hole disc, incorporating a very-wide, split-spray pattern for maximum fuel atomization for modern single-valve and multi-valve engines. Can be angled to spray front or back.

All Gen IV fuel injectors will function at rail pressures in excess of 130 PSI, 9 bar.

Will maintain consistency to a minimum pulse width of only 1.5 ms.

Excellent low pulse width response with predictable response down to 2ms.

Excellent atomization for modern multi-valve engines.

Body Design: EV14, Composite plastic w/internal filter
Injector type: Saturated
Fuel Nozzle: 6-hole disc - max atomization
Flow rate:  525 cc/min @ 3 Bar (50 lbs/hr at 43.5 psi)

Length, overall: 2.6 inches, 65 mm
Lenght, oring to oring: 2.0 in., 51 mm
Body Diameter: 0.6 inches, 15.25 mm
O-rings: Viton, Top and bottom, 14.5mm
Resistance: 12.7-13.1 OhmsElectrical connector type: U.S. CAR (EV6)
