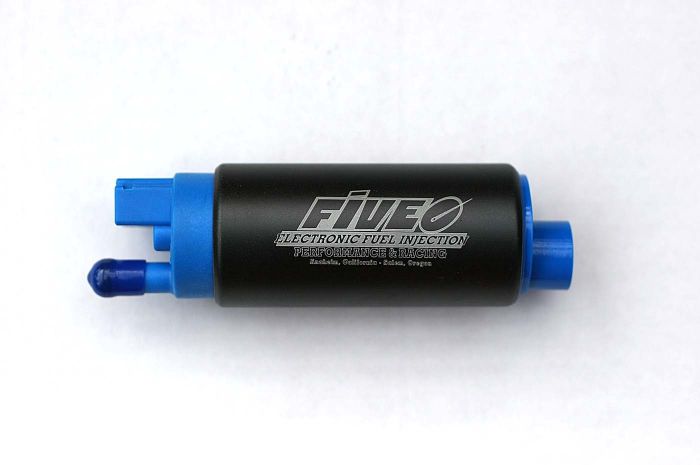

FIVEO: 00069 GM Specific Fit, 340 LPH In-Tank Fuel Pump Series

Fiveomotorsport
Part Number: Fiveo 00069 Fuel Pump GM - 340 ltr/hr, DIRECT-FIT, with Kit
Resistance: 12 volts
High Performance
$68.99 (USD)
Subtotal: $68.99

BUICK Grand Nat'l 1982-1987
CAMARO/FIREBIRD 5.0, 5.7L 1985-1992
CORVETTE 5.7L 1982-1996
CHEVY/GMC 305/350 TBI 1987-1997

MSRP LIST PRICE: $129.99

Receive 15% discount on this fuel pump when purchased with any set of fuel injectors.

Tech Data:

Fiveomotorsport's In-Tank Fuel Pump Series features superior flow throughout a wide pressure range.
At 40 psi our 00069 GM pump boasts more than 341.33 ltr/hr (90.1 g/hr). This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the original equipment (OEM) configuration. The Fiveo's In-Tank Pump Series is also perfect for use as a universal replacement for applications that require more flow to support forced air power-adders such as turbo and supercharged applications.

Fiveo's In-Tank Series are high-output, electric fuel pumps that fits most popular EFI applications.

Compact, lightweight pumps that bolts into many existing OEM hanger assemblies.

RATED FOR E85, Gasoline (MTBE additive)

00069 GM 340 lph PUMP FEATURES A STRAIGHT-THROUGH, INLET TO OUTLET.

• P/N - 00069
• Fits most vehicles where popular aftermarket pumps are applicable - GM Specific
• Includes installation kit with filter
• Designed for in-tank use only
• Can be used in Carburetor and EFI applications
• Turbine pump mechanism increases durability and can be used in pulse modulated applications.

Fuel Pump Specs:
Applications: GM Specific

Condition: Hermetically sealed, all components brand-new
Usage: In-tank using stock housing
Fuel Flow: 341.33 ltr/hr, 90.1 gal/hr
Version: High Pressure
Installation Kit Included: Yes
MIN Voltage: 12V
Operating Pressure: 0-120 psi determined by fuel pressure regulator

Fuel Pump Dimensions:
4.75" - 120 mm, Inlet tip to outlet tip
3.125" - 80 mm, Metal case only
1.650" - 42 mm,  Diameter
Inlet width: .75" (3.4") - 18.75mm - (See photos).
Outlet width: 5/16" - 8 mm

More Information
Manufacturer Fiveomotorsport
OEM or Aftermarket High Performance
Impedance 12 volts
Part Number Fiveo 00069 Fuel Pump GM - 340 ltr/hr, DIRECT-FIT, with Kit
