1200cc EV14, LONG, Asian Import Fit: Totota 2JZ 1JZ 7MGTE 5MG 2RZ 3RZ

FiveoMotorsport / Bosch
Part Number: 026M1200X
Resistance: 12.5 Ohms
Connector Type: Sumitomo
High Performance
$135.00 (USD)
Subtotal: $135.00

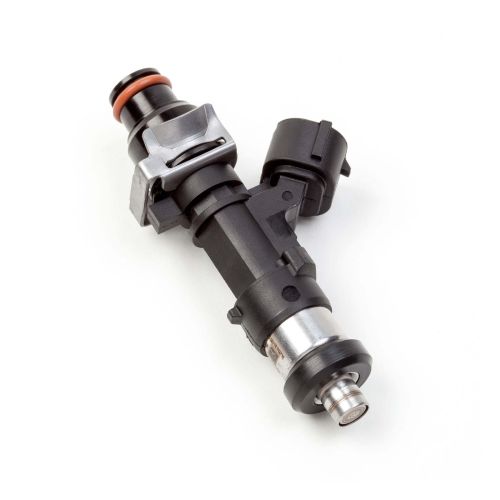

FiveoMotorsport / Bosch EV14, 1200cc Fuel Injectors for Toyota, Nissan, Mazda top-feed applications

  • Direct fit.  No adapters needed.  No rewiring required.
  • Nominal flow rate 1200 cc/min @ 3.0 Bar (43.5 psi)
  • Fuel Pressure Range:  Min. 3 Bar (43.5 psi) – Max. 7 Bar (101.5 psi)
  • High Impedance:  12.5 Ohms
  • Compatible with all fuel types
  • Delivered in flow-balanced and matched sets
  • Electrical connector:  Sumitomo



FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
The finished injectors are then flowed and inscribed with a control number.
Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.

FLOW CHART: Each set is sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.

SPECIAL NOTE TO OUR E85 USERS:
Ethanol based fuels tend to "dry" the fuel injector outlet orifices.
Users/tuners should be made aware that this may cause a "sticking" problem in fuel injectors that sit idle for a prolonged period of time.
It is suggested for applications running high ethanol content based fuels, to periodically incorporate into their fuel-system-maintenance a drop of light petroleum-based lubricant for each fuel injector.
This is also considered to be good maintenance, but not essential, for stainless steel based (Black-Ops Series) fuel injectors.
It should also be noted that for optimum performance the entire fuel system should be made up of ethanol approved materials including all fuel lines/fuel pump/fuel filter, etc.





More Information
Manufacturer FiveoMotorsport / Bosch
OEM or Aftermarket High Performance
Connector Type Sumitomo
Impedance 12.5 Ohms
Part Number 026M1200X
Make LEXUS, MITSUBISHI, TOYOTA
Model ECLIPSE, EXPO, GALANT, GS300, MIGHTY MAX, MONTERO SPORT, OUTLANDER, SC300, SUPRA, TACOMA
Engine DE, L4, 2.4L, 4G64, G, GAS, ES, L4, 2.4L, 4G64, G, GAS, GS, L4, 2.4L, 4G64, G, GAS, GS, L4, 2.4L, 4G64, GAS, L4, 2.4L, 4G64, G, GAS, L4, 2.4L, 4G64, GAS, L4, 2.4L, 4G64, W, GAS, L4, 2.7L, 3RZFE, GAS, L4, 2.7L, 3RZFE, M, GAS, L4, 2.7L, 3RZFE, U, GAS, L6, 3.0L, 2JZGE, D, GAS, L6, 3.0L, 2JZGE, J, GAS, L6, 3.0L, 7MGE, GAS, L6, 3.0L, 7MGE, M, GAS, L6, 3.0L, 7MGTE, M, Turbo, GAS, LS, L4, 2.4L, 4G64, G, GAS, REGULAR CAB, L4, 2.7L, 3RZFE, M, GAS, REGULAR CAB, L4, 2.7L, 3RZFE, U, GAS, S, L4, 2.4L, 4G64, G, GAS, SP, L4, 2.4L, 4G64, G, GAS, SP, L4, 2.4L, 4G64, W, GAS, SPYDER GS, L4, 2.4L, 4G64, G, GAS, SPYDER, L4, 2.4L, 4G64, G, GAS, SPYDER, L4, 2.4L, 4G64, GAS, SWB, L4, 2.4L, 4G64, G, GAS
