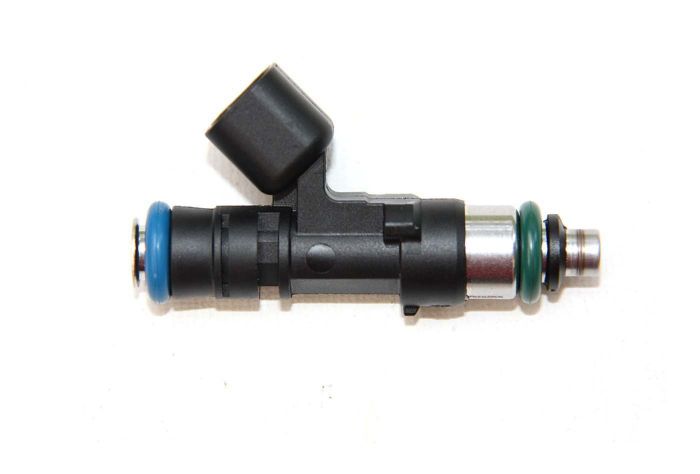

550cc, 52lbs, 16-hole Fuel Nozzle
Part Number:
055U550, 16 hole nozzle
Resistance:
12.5 Ohms
Connector Type:
USCAR (EV6)
Country Of Manufacture:
United States
High Performance
$105.00 (USD)
EV14-style, Fiveomotorsport 16-Hole Fuel Nozzle
- Standard Length US/ Euro Fit
- 16-hole fuel nozzle
- Listed price is for a single (1) fuel injector
- This fuel injector has 4 center holes with 12 additional holes evenly-spaced and radiating around the outer edge of the nozzle plate. Delivery nozzle has 16-holes total.
- STANDARD length, 2.5 inches overall (Fits: LS2, SRT-4, SRT-8, Mini, etc.)
Observed flow-rates:
550 cc/min at 43.5 psi (3.0 bar)
625 cc/min at 50.8 psi (3.5 bar)
668 cc/min at 58.0 psi (4.0 bar)
Electrical Connector: EV-14 (US-CAR)
Spray type: wide cone, 8-25 degree, zero-deviation, superior fuel atomization
All Fuel types: gasoline, methanol, ethanol, E85, E25, E10
| OEM or Aftermarket | High Performance |
|---|---|
| Connector Type | USCAR (EV6) |
| Flow Rate | 550 cc/min @ 3 Bar |
| Impedance | 12.5 Ohms |
| Part Number | 055U550, 16 hole nozzle |
