1200cc Black Ops, Honda B, D, H Series

Custom Fiveo
Part Number: Black Ops M114B1200
Flow Rate: Please select an option below
Resistance: 12.5 Ohms
Connector Type: USCAR (EV6)
High Performance
$115.00 (USD)
Subtotal: $115.00

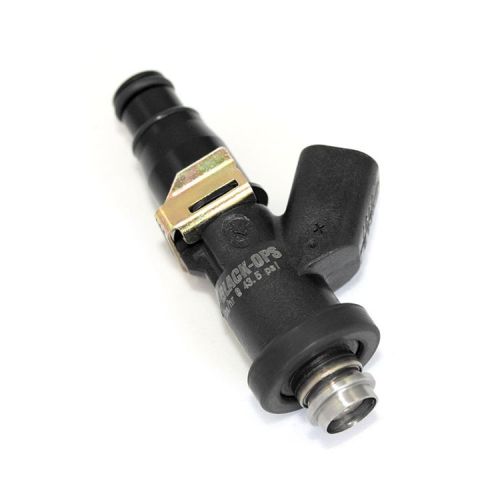

BLACK OPS: STAINLESS STEEL BASED, ULTRA-PERFORMANCE FUEL INJECTORS.

Honda, EV14, Fiveomotorsport high performance, 1200cc/min high impedance, flow-matched fuel injectors.
Custom fitted for Honda B, D, and H-series engines or equivalent.

LIST PRICE: Includes one (1) fuel injector with all rubber components and connector pigtail (see photos)


Our injectors are custom-manufactured using brand new American-made injector EV14 technology and tested in large-quantity batches to achieve the highest quality product. The resulting sets are all-fuels rated; including gasoline (MTBE), and E-85. The finished injectors are then flowed and inscribed with a control number. Data is recorded for each injector. They are then sealed and placed in tightly matched sets ready for shipping world wide.

  • You don't get this kind of technology from an OE injector.

This custom fuel injector is part of our new series of high performance, flow matched superstreet and racing fuel injectors custom fitted for Honda engines.

FLOW CHART: sets are sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3, 3.5, and 4 BAR at 15%, 50% and 100% for each injector, along with a complete dead time (latency) table.
Flow matching was done with industry-standard equipment of the highest quality. The test was performed at varying temperatures to achieve realistic results.

The injectors incorporate a single-hole disc fuel delivery nozzle with a cone spray for excellent fuel atomization.

Use for naturally aspirated and forced-air/exhaust engines
Injector type: EV14, saturated

Flow rates:
Flow matched to within 1.0%
(These are true and tested flow rates of this individual set of 4 fuel injectors).
We use the industry standard Heptane as our testing agent.
1200 cc/min at 43.5 psi (3 bar)
1308 cc/min at 50 psi (3.5 bar)
1415 cc/min at 58psi (4 bar)

Some slight flow variation will be present from set-to-set, but never more than 1% in any one set.
Sample Dead Time: 1.0 ms at 14 Volts - Complete table ships with set.
This injector will function at rail pressures in excess of 101 psi, 7 bar.
Excellent low pulse width response with predictable response down to 1 ms.
Excellent atomization for modern multi-valve engines.
Application: Super-street and racing engines.
Fuel Delivery: Single-hole disc
Electrical Connector: EV6, (U.S. CAR)
Spray type: wide cone, maximum atomization

Overall injector length: 74 mm
Top oring to bottom seal: 53 mm

Injector body diameter: 16 mm
Oring/Seal: Viton - Top: 11.5 mm, Bottom: 22 mm
Fuel types: All types of gasoline, Methanol, E85, E25, E10

More Information
Manufacturer Custom Fiveo
OEM or Aftermarket High Performance
Connector Type USCAR (EV6)
Flow Rate Please select an option below
Impedance 12.5 Ohms
Part Number Black Ops M114B1200
