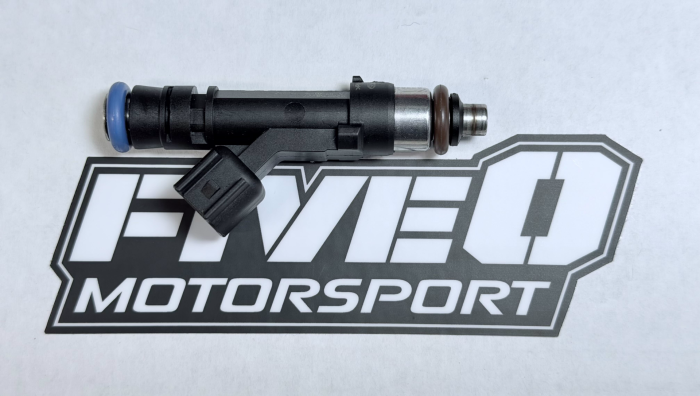

1000cc USCar EV14 Long Length Fuel Injector
Bosch EV14, Fiveomotorsport Custom
Part Number:
138U1000
Flow Rate:
1000cc
Resistance:
12.5 Ohms
Connector Type:
USCAR (EV6)
High Performance
$99.50 (USD)
This Bosch EV14 injector is identical to our competitors 1000cc option, but at a lower price point
List Price includes: a single (1) brand new EV14 1000cc/min Fuel Injector
Purchasing a matched set guarantees a unique flow charts with latency tables
FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
Each injector is flow tested, balanced and inscribed with a control number
Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.
FLOW CHART: Each set is sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.
SPECIAL NOTE TO OUR E85 USERS:
Ethanol based fuels tend to "dry" the fuel injector outlet orifices.
Users/tuners should be made aware that this may cause a "sticking" problem in fuel injectors that sit idle for a prolonged period of time.
It is suggested for applications running high ethanol content based fuels, to periodically incorporate into their fuel-system-maintenance a drop of light petroleum-based lubricant for each fuel injector.
This is also considered to be good maintenance, but not essential, for stainless steel based (Black-Ops Series) fuel injectors.
It should also be noted that for optimum performance the entire fuel system should be made up of ethanol approved materials including all fuel lines/fuel pump/fuel filter, etc.
High resistance, no inline resistors or resistor box requires for use.
All New-Generation EV14 fuel injectors will function at rail pressures in excess of 116 psi, 8 bar.
Injector type: EV14, saturated
Fuel Delivery: Single-hole disc
Electrical Connector: U.S. CAR
Spray: Wide cone
Length: 3 inches, 74 mm
Diameter: 16 mm
O-rings: Top and bottom Viton, 14.5 mm
Resistance: 12.5 Ohms
Fuel Types: Gasoline, E10, E85
Manufacturer | Bosch EV14, Fiveomotorsport Custom |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | USCAR (EV6) |
Flow Rate | 1000cc |
Impedance | 12.5 Ohms |
Part Number | 138U1000 |
