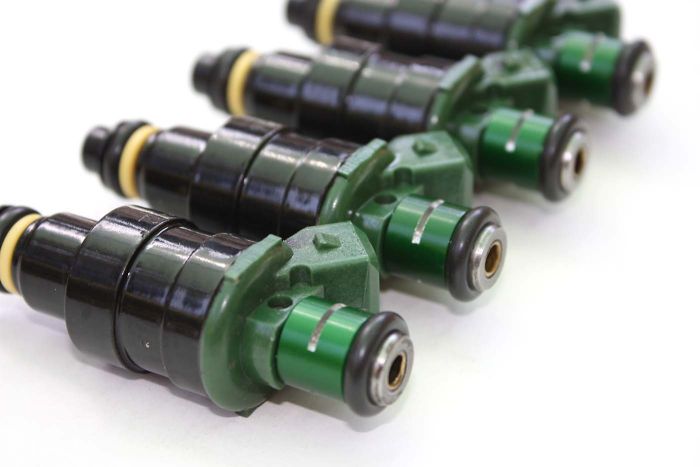

1400cc - 135lbs/hr EV1-Asphalt Series Peak and Hold Fuel Injectors

Custom Fiveo
Part Number: A1400-US - 2.5 Ohms
Flow Rate: Please select an option below
Resistance: 2.5 OHMS
$140.00 (USD)
Subtotal: $140.00

LIST PRICE INCLUDES: ONE (1) FUEL INJECTOR with O-RINGS

MATCHED SETS AVAILABLE

  • This injector is part of the new "ASPHALT" series of flow-matched, peak and hold

  • All Viton O-rings are supplied for installation

  • Custom manufactured, American-made fuel injectors

  • Rated FLEX for all-fuels ; including gasoline (MTBE), E-85, all oxygenated fuels.



FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
The finished injectors are then flowed and inscribed with a control number.
Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.

FLOW CHART: Each set is sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.

SPECIAL NOTE TO OUR E85 USERS:
Ethanol based fuels tend to "dry" the fuel injector outlet orifices.
Users/tuners should be made aware that this may cause a "sticking" problem in fuel injectors that sit idle for a prolonged period of time.
It is suggested for applications running high ethanol content based fuels, to periodically incorporate into their fuel-system-maintenance a drop of light petroleum-based lubricant for each fuel injector.
This is also considered to be good maintenance, but not essential, for stainless steel based (Black-Ops Series) fuel injectors.
It should also be noted that for optimum performance the entire fuel system should be made up of ethanol approved materials including all fuel lines/fuel pump/fuel filter, etc.



This injector will function at rail pressures in excess of 101 PSI, 7 bar.

Injector type: EV1

Fuel Delivery: Single-hole Pintle

Electrical Connector: EV1, minitimer

Spray type: wide cone, maximum atomization

Length: 3 inches, 74 mm

Diameter: 16 mm

Orings: Top and bottom, 14.5 mm

Resistance: 3.2 Ohms
Latency: 0.555 ms at 14 volts (Complete table, 8-18 volts, delivered with each set).

Fuel types: All oxy-gasoline, methanol, E85, E25, E10



More Information
Manufacturer Custom Fiveo
Flow Rate Please select an option below
Impedance 2.5 OHMS
Part Number A1400-US - 2.5 Ohms
