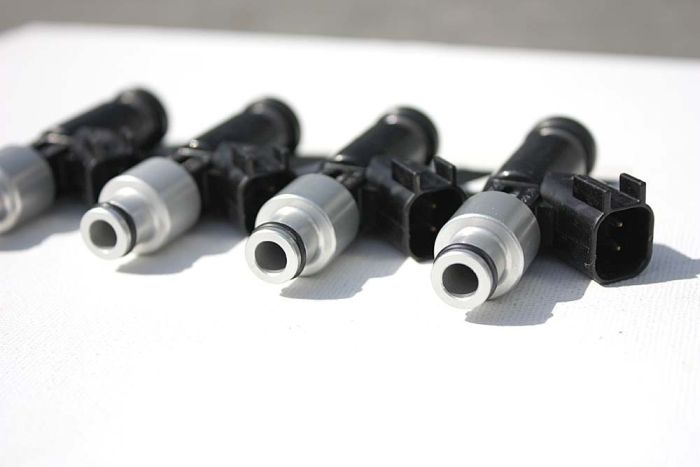

1800cc Asphalt II Custom Manufactured, Flow-Matched/Connector Adapters; Fuel Injectors

USE FOR HIGHLY MODIFIED SPORT COMPACT ENGINES ONLY.
This injector is sold with a FREE EV6/EV1 Electrical Connector Adapters.
$154.80 - You receive (1) 1800cc injector and (1) Electrical Adapter (See photos).

Introduction THE INDUSTRY STANDARD IN A 1800CC ALL-FUEL RATED FUEL INJECTOR - The Fiveo 1800cc has set a base standard for linearity and dynamic control in a high impedance fuel injector over 10 Ohms.
Flowing at 1800cc/min at 3 BAR. This new injector can provide a smooth idle quality on most engines running all types of gasoline and E85. We, of course recommend seeking a pro-tuner. With a pressure capability of 7 BAR this injector will flow over 2700 cc/min with excellent low pulse width linearity, and has the broad operating range equal to any (EFI) injector on the market.

This is a set of high-performance, high-impedance, flow-matched, Fiveomotorsport 1800cc "Asphalt II Series" fuel injectors for sport compact single or multi-valve engines.

THIS 1800CC INJECTOR IS RATED: FLEX-FUEL COMPATIBLE.

OUR ASPHALT-SERIES FUEL INJECTORS ARE RATED FOR GASOLINE, OXYGENATED (MTBE, ETHER) RACING FUEL OR ANY OF THE METHYL ALCOHOL (METHANOL) COMPOUNDS.

New Viton 12/16mm orings/seals are supplied for installation.

This Fiveo injector is part of our new "ASPHALT 2" series of new generation, flow matched, superstreet and racing fuel injectors. This is a modified fuel injector set - We custom manufacture brand new American-made fuel injector cores in large-quantity batches to achieve the highest quality product.

FLOW CHART: Each set is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3, 3.5, and 4 BAR at 25%, 50% and 100% for each injector, along with a complete dead time (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.

The injectors incorporate a single modified-pintle fuel delivery nozzle with a wide cone spray for excellent fuel atomization.

Use for all forced-air and naturally aspirated induction engines.

This injector set is sold with a money back guarantee. If you are not 100% satisfied we will exchange or refund your purchase price for returned, unused and uninstalled fuel injectors. You pay only the shipping.

Injector Body Design: Metal and composite plastic

All sets are flow matched to within 0.7 - 1.2 %
We use the industry standard Heptane as our testing agent.

TESTED FLOW RATES:
170 lbs/hr, 1800 cc/min at (3.0 bar)
185 lbs/hr, 1950 cc/min at (3.5 bar)
198 lbs/hr, 2080 cc/min at (4.0 bar)

Dead Time: 1.35ms at 14 Volts

This Fiveo injector will function at rail pressures in excess of 101.5 psi, 7 bar.
Excellent low pulse width response with predictable response down to 3.2 ms.
Excellent atomization for modern multi-valve engines.

Injector type: Saturated, New generation EV6

Application: Super-street and racing, naturally- and forced-aspirated engines.

Fuel Delivery: Single-hole, modified disc

Electrical Connector: EV6, (USCAR)

Spray type: Split fountain, maximum atomization

Length: 3 inches, 74 mm (with extenders installed).

Diameter: 16 mm

Top Oring: Viton 12 mm

Bottom Seal: Viton 16 mm

Resistance: 11.8-15.5 Ohms - No inline resistors are required.

Fuel types: Race gas; Q, VP, pump gas, all oxygenated fuels
