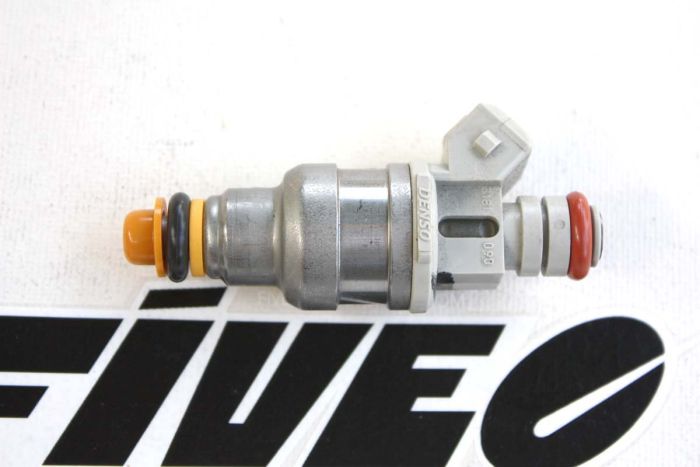

62lbs, 650cc FIVEO Custom Flow-Matched Fuel Injectors
Denso
Part Number:
F87EU650
Resistance:
14 Ohms
Connector Type:
Jetronic (EV1)
High Performance
$90.00 (USD)
BRAND NEW, High Impedance, High Performance Fuel Injectors
- MATCHED SETS AVAILABLE
-
LIST PRICE: 1 - FUEL INJECTOR with O-RINGS
- STEEL BODY - Can be threaded for marine applications
FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
The finished injectors are then flow tested and inscribed with a control number.
Data is recorded for each injector. The fuel injectors are then grouped into balanced and matched sets ready for shipping.
FLOW CHART: sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.
Part number: F87EU650
Injector type: Single pintle, saturated
Flow Rate:
62lbs/hr @ 43.5 PSI (650 cc/min @ 3 BAR)
70lbs/hr @ 58.0 PSI (730 cc/min @ 4 BAR)
Excellent linearity and easy tuning.
Resistance: 12.8 - 14.5 Ohms (high impedance)
Voltage: 8-15 Volts, Nominal 13.5 Volts
Amperage: 1.5 Amps
Pressure: Min. 36 PSI (2.5 bar), Max. 101.5 PSI (7 bar)
Buy from a seller you can trust. Fiveomotorsport, Est. 2000
We are fuel injector experts - email your questions.
Manufacturer | Denso |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | Jetronic (EV1) |
Flow Rate | 650 cc/min at 3 Bar (43.5 psi) |
Impedance | 14 Ohms |
Part Number | F87EU650 |
