Denso, 47lbs/hr, 470cc, LONG, U.S./Euro FIT, Matched
Denso/Custom Fiveo
Part Number:
Denso 3521US470 47LB: 550-565 HP V-8
Resistance:
14 Ohms
Connector Type:
USCAR (EV6)
High Performance
$74.50 (USD)

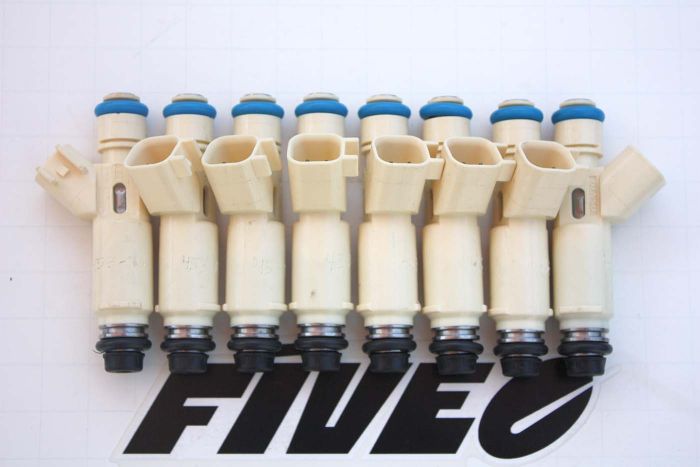

550-565 BHP -- USE THIS SET OF FUEL INJECTORS FOR HIGHLY MODIFIED V-8 ENGINES.
This fuel injector set has been carefully matched for an exact engine.
- Street-driven, daily-driver, running pump gas - 91-93 octane or race gas, E85.
- Stock-like IDLE QUALITY obtainable with proper tuning.
- Use for up to 565 BHP (BRAKE-SPECIFIC HORSEPOWER).
Fiveo Custom set of 47lbs/hr, 490cc/min EV6 New Generation, flow-matched Design-III fuel injectors.
Meets or exceeds all requirements for U.S. Spec vehicles:
Chevrolet LS6
Dodge/Chrysler: 4.7L, 5.7L
Ford 4.6L, Coyote 5.0L, 5.4L
FLOW CHART: Each set is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3, 3.5, and 4 BAR at 25%, 50% and 100% for each injector, along with a complete dead time (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.
Injector Body Design: EV6, long
Injector type: Saturated
Fuel Nozzle: Single-hole disc w/diffuser plate, maximum atomization - WATCH VIDEOS.
1. Pulse Test: 2.5 ms at 5400 rpm and 43.5 PSI
2. Idle Test: 16 ms at 900 rpm and 43.5 PSI
Flow rate:
47 lbs/hr at 43.5 PSI
Dead time (latency): 0.75 ms at 14 volts
Minimum pulse width: 1.6 ms
Electrical connector type: U.S. CAR
Overall Length: 2.95 in./75.5 mm
O-ring to o-ring Length: 2.50 in./64.0 mm
Diameter: .60 in./16.25 mm
O-rings: Viton, Top and bottom, .55 in./14.50 mm
Resistance: 14.5 Ohms
(All fuel injector specifications meet or exceed the manufacturer's specification standard).
Manufacturer | Denso/Custom Fiveo |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | USCAR (EV6) |
Impedance | 14 Ohms |
Part Number | Denso 3521US470 47LB: 550-565 HP V-8 |
Year(s) | 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 |
Make | BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, FORD, GMC, HUMMER, JEEP, LINCOLN, MERCURY, OLDSMOBILE, PONTIAC |
Model | 300, ASPEN, CHALLENGER, CHARGER, CORVETTE, DAKOTA, DURANGO, F-150, F-150 HERITAGE, MAGNUM, MUSTANG, RAM 1500, RAM 1500 PICKUP |
Engine | ADVENTURER, V8, 5.7L, 2, GAS, BULLITT, V8, 4.6L, X, GAS, C LWB, V8, 5.7L, EZD, T, GAS, C LWB, V8, 5.7L, H, GAS, C, V8, 5.7L, EZD, T, GAS, C, V8, 5.7L, H, GAS, COBRA, V8, 4.6L, V, GAS, DAYTONA R/T, V8, 5.7L, H, GAS, FX2, V8, 4.6L, W, GAS, FX2, V8, 5.4L, 5, GAS, FX4, V8, 5.4L, 5, GAS, GT, V8, 4.6L, GAS, GT, V8, 4.6L, H, GAS, GT, V8, 4.6L, X, GAS, HARLEY-DAVIDSON EDITION, V8, 5.4L, 3, Super, GAS, HARLEY-DAVIDSON EDITION, V8, 5.4L, 5, GAS, KING RANCH, V8, 5.4L, 5, GAS, LARAMIE, V8, 5.7L, D, GAS, LARAMIE, V8, 5.7L, EZB, 2, GAS, LARIAT, V8, 5.4L, 5, GAS, LIGHTNING, V8, 5.4L, 3, Super, GAS, LIMITED HYBRID, V8, 5.7L, EZE, T, ELECTRIC/GAS, LIMITED, V8, 5.4L, 5, GAS, LIMITED, V8, 5.7L, 2, GAS, LIMITED, V8, 5.7L, EZD, T, GAS, MACH 1, V8, 4.6L, R, GAS, R/T, V8, 5.7L, 2, GAS, R/T, V8, 5.7L, EZC, T, GAS, R/T, V8, 5.7L, EZD, T, GAS, R/T, V8, 5.7L, H, GAS, SLT, V8, 5.7L, 2, GAS, SLT, V8, 5.7L, D, GAS, SLT, V8, 5.7L, EZB, 2, GAS, SPORT, V8, 5.7L, EZB, 2, GAS, ST, V8, 5.7L, EZB, 2, GAS, STX, V8, 4.6L, 8, GAS, STX, V8, 4.6L, W, GAS, TRX4, V8, 5.7L, EZB, 2, GAS, V8, 4.6L, 6, GAS, V8, 4.6L, W, GAS, V8, 5.4L, 5, GAS, V8, 5.4L, L, GAS, V8, 5.7L, D, GAS, XL, V8, 4.6L, 8, GAS, XL, V8, 4.6L, W, GAS, XL, V8, 5.4L, 5, GAS, XLT, V8, 4.6L, 8, GAS, XLT, V8, 4.6L, W, GAS, XLT, V8, 5.4L, 5, GAS, XTR, V8, 4.6L, W, GAS, XTR, V8, 5.4L, 5, GAS |
