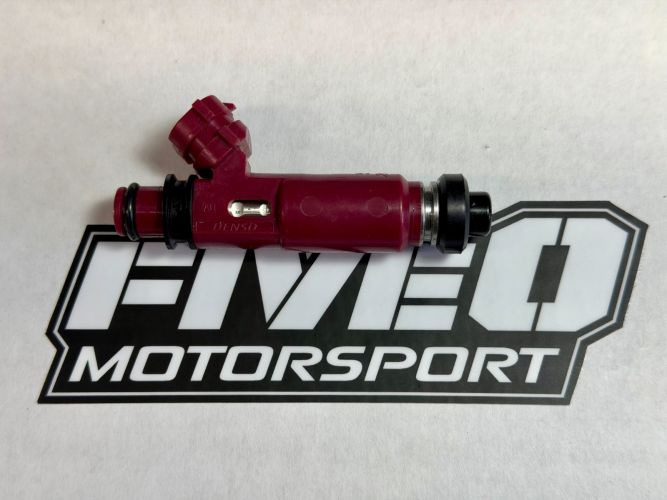

315cc Genuine Denso OEM Upgrade

Fiveomotorsport custom, flow-matched sets availble, genuine Denso fuel injector.

• 315cc/min (30 lbs/hr) high-performance fuel injectors
• All new O-rings/seals included.
• Price incudes a single (1) fuel injector.
• Delivered as a flow-matched set when ordering 4 or more fuel injectors.
• You will receive a data sheet showing actual tested flow-rate for each injector.
• Note:  Injector body color may be different from the photo.  Color does not indicate injector flow-rate.

FLOW CHART:  complete flow-data chart indicating individual dynamic and static flow rates at 3.0, 3.5, and 4.0 BAR at idle, 50% and 100% duty-cycle for each injector, along with dead time (latency) values at 14 volts. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.

Use for Super Street or racing 4 cylinder, single or multi-valve, normally-aspirated or forced-air induction engine applications:

2002-12 Subaru 2.0L 4 cylinder Turbo,

2001-07 Hyundai Tiburon (with 14 mm intake orings)

2001-03 Mazda (Speed) Protege,

1997-04 Mitsubishi.

This is a high performance, high-volume fuel injector.

The fuel delivery is from a single-hole disc that delivers a medium-wide cone-shape spray pattern for maximum fuel atomization.

• Body Design: Composite plastic
• Flow rate at 3 bar: 315 cc/min
• Length: 2.52 inches, 64 mm
• Body Diameter: 0.63 inches, 16 mm
• O-rings: Top 11.5mm OD/Bottom 16mm seal
• Resistance: 14.0 Ohms
• Electrical connector type: Sumitomo
