2001-07 BMW S54, OEM - NEW

BMW S54 2001-08 M3 Z3 Z4

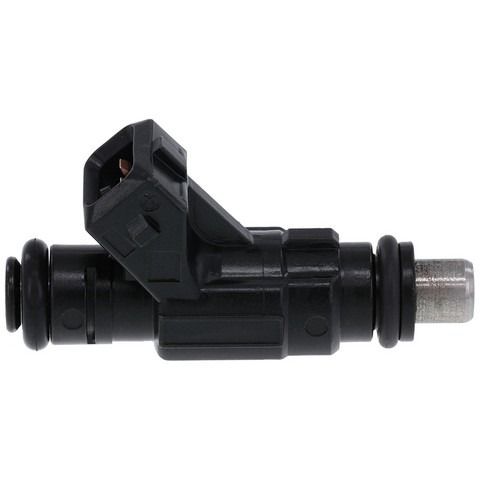

Custom-milled fuel injectors - NEW. Match Obsolete OEM listed below

• STANDARD length, 2.5 inches, 62 mm
• EV-1 electrical connector (Jetronic, minitimer)
• All Viton 14mm o-rings Included for installation
• OEM - NO RE-TUNING

• 4-hole disc fuel nozzle

Each set will maintain linearity throughout the test range of 15-25%, 50% and 80% duty cycle.

Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.
Individual sets may flow differently than this set. But no set will ever vary more than 0.5-0.1.5 %

These sets are very consistent and will require no more than 1% trim for easy tuning with accurate compensation

OEM obsolete fuel injector: 0280156052, 85212199
BMW S54 2001-07 M3 Z3 Z4 OEM

• Resistance: 14.5 Ohms
• Voltage: 8-15 Volts, Nominal 13.5 Volts
• Pressure: Min. 36 PSI (2.5 bar), Max. 130 PSI (9 bar)

Fiveomotorsport is a respected name in OEM and high performance fuel injectors.
