M150, 1600CC BLACK OPS, 1990-2005, MAZDA MIATA, PROTEGE
Custom Fiveo/Delphi
Part Number:

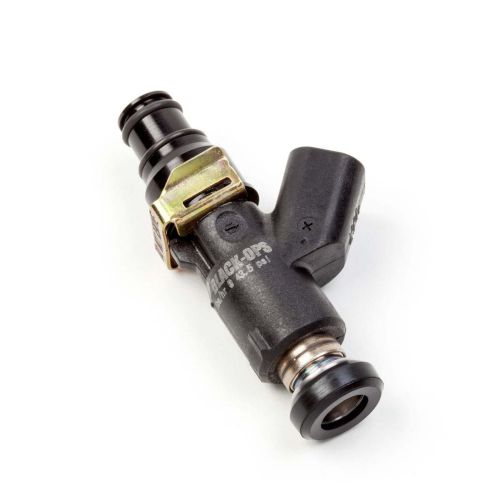

MAZDA MIATA, Protege: 1600cc Black-Ops M-Series Fuel Injectors
Resistance:
12.5 OHMS
Connector Type:
Jetronic (EV1)
High Performance
$150.00 (USD)
Fiveomotorsport introduces the "Black-Ops, M-Series" High-Performance,
Flow-Matched Fuel Injectors (see complete details and specifications below).
PRICE INCLUDES ONE (1) 1600cc FUEL INJECTOR w/ELECTRICAL CONNECTOR Adapter (US Car/Sumitomo)
Made in U.S.A.
ULTRA FAST RESPONSE TIMES: CONSISTENT EVEN AT VERY LOW PULSE WIDTHS.
LOW DEAD-TIMES ACROSS THE OPERATING VOLTAGE RANGE
- FREE ELECTRICAL ADAPTERS INCLUDED
- OCTANE RATING: 87-120
- COMPATIBLE WITH ALL PERFORMANCE FUELS: Q16, E85, etc.
- INTERNAL PARTS: NO RUBBER OR PLASTIC - All STAINLESS STEEL INTERNAL
Fiveomotorsport's new single-hole w/ball & diffuser plate fuel nozzle - WATCH VIDEO.
This new nozzle guarantees a tight cone spray throughout the rpm range. And where it gets really good is at high volume/high rpm and high pressure at boost.
Testing has been completed. Check out the video of the Black-Ops M80 operating at 7,200 rpm and a pulse width of only 2 ms.
Even with the simulated conditions you will still see the super-fine droplets our new single-hole nozzle produces.
This injector can provide a smooth idle quality on engines running all types of performance fuel.
Fuel Injector Specifications:
Type: Saturated
Fuel Delivery: Single-hole ball valve (for maximum fuel atomization).
Coil Resistance: 12.5 OHMS
Flow-Matched sets 0.5-1.5% -- guaranteed.
With your order you will receive:
- Complete flow-data-sheet showing actual tested flow rates for your individual injectors (see photos)
- Static flow data at 3 Bar (43.5 psi), 3.5 Bar (50.8 psi) and 4 Bar (58.0 psi)
- Dynamic flow data at 3 Bar at 6000 rpm and 5.0 ms and idle data at 800 rpm and 1.5 ms
- Latency (dead-time/offset) tables from 8 volts to 18 volts at 3, 4, and 5 Bar
Injector Dimensions:
Electrical connector type: US CAR
Overall length: 72 mm - approx. 2.9 in
Body Diameter: 17 mm - 0.70 in
O-ring to o-ring, on center: 62 mm - approx. 2.5 in
Upper o-ring diameter: 11.5 mm - 0.45 in
Lower seal diameter: 16 mm - 0.60 in
O-ring/seal material: Viton
Manufacturer | Custom Fiveo/Delphi |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | Jetronic (EV1) |
Impedance | 12.5 OHMS |
Part Number | MAZDA MIATA, Protege: 1600cc Black-Ops M-Series Fuel Injectors |
Year(s) | 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 |
Make | MAZDA |
Model | MIATA, PROTEGE |
Engine | 4WD, L4, 1.8L, GAS, DX, L4, 1.5L, GAS, DX, L4, 1.8L, GAS, ES, L4, 1.8L, GAS, GT, L4, 1.8L, GAS, L4, 1.5L, GAS, L4, 1.6L, GAS, L4, 1.8L, GAS, LS, L4, 1.8L, GAS, LX, L4, 1.5L, GAS, LX, L4, 1.8L, GAS, MAZDASPEED, L4, 1.8L, Turbo, GAS, S, L4, 1.6L, GAS, S, L4, 1.8L, GAS, SE, L4, 1.6L, GAS, SE, L4, 1.8L, GAS |
