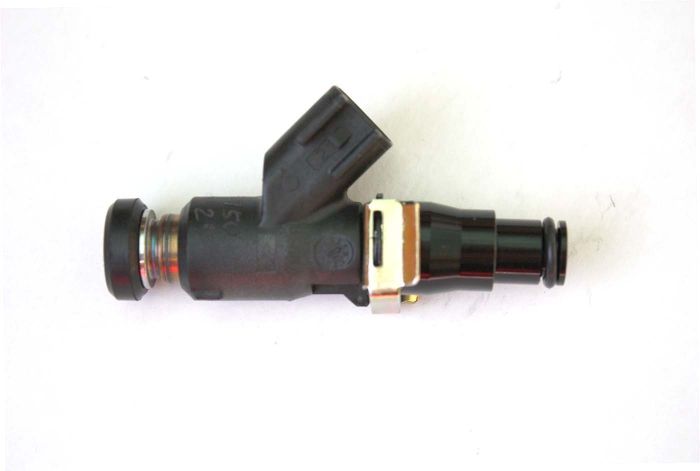

M114, 1200cc Black Ops, 1990-2005, MAZDA MIATA, Protege

Custom Fiveo/Delphi
Part Number: MAZDA MIATA, Protege: 1200cc Black-Ops M-Series Fuel Injectors
Resistance: 12.5 OHMS
Connector Type: USCAR (EV6)
High Performance
$115.00 (USD)
Subtotal: $115.00

Fiveomotorsport introduces the "Black-Ops, M-Series" High-Performance,
Flow-Matched Fuel Injectors (see complete details and specifications below).

PRICE INCLUDES ONE (1) 1200cc FUEL INJECTOR w/ELECTRICAL CONNECTOR Adapter (US Car/Sumitomo)

Made in USA

ULTRA FAST RESPONSE TIMES: CONSISTENT EVEN AT VERY LOW PULSE WIDTHS.

LOW DEAD-TIMES ACROSS THE OPERATING VOLTAGE RANGE

  • FREE ELECTRICAL ADAPTERS INCLUDED with each set purchased.
  • OCTANE RATING: 87-120
  • COMPATIBLE WITH ALL PERFORMANCE FUELS: Q16, E85, etc.
  • INTERNAL PARTS:  NO RUBBER OR PLASTIC - All STAINLESS STEEL

Fiveomotorsport's new single-hole w/ball & diffuser-plate fuel nozzle - WATCH VIDEO.
This new nozzle guarantees a tight cone spray throughout the rpm range. And where it gets really good is at high volume/high rpm and high pressure at boost.
Testing has been completed. Check out the video of the Black-Ops M80 operating at 7,200 rpm and a pulse width of only 2 ms.
Even with the simulated conditions you will still see the super-fine droplets our new single-hole nozzle produces.

This injector can provide a smooth idle quality on engines running all types of performance fuel.

Fuel Injector Specifications:

Fuel Delivery: Single-hole ball valve (for maximum fuel atomization).
Coil Resistance: 12.5 OHMS (high-impedance)
Flow-Matched sets 0.5-1.5% -- guaranteed.
Minimum Pulse Width: 1.8 ms

With your order you will receive:

  • Complete flow-data-sheet showing actual tested flow rates for your individual injectors (see photos)
    • Static flow data at 3 Bar (43.5 psi), 3.5 Bar (50.8 psi) and 4 Bar (58.0 psi)
    • Dynamic flow data at 3 Bar at 6000 rpm and 5.0 ms and idle data at 800 rpm and 1.5 ms
    • Latency (dead-time/offset) tables from 8 volts to 18 volts at 3, 4, and 5 Bar

Injector Dimensions:

Electrical connector type: US CAR
Overall length: 72 mm - approx. 2.9 in
Body Diameter: 17 mm - 0.70 in
O-ring to o-ring, on center: 62 mm - approx. 2.5 in
Upper o-ring diameter: 11.5 mm - 0.45 in
Lower seal diameter: 16 mm - 0.60 in
O-ring/seal material: Viton



More Information
Manufacturer Custom Fiveo/Delphi
OEM or Aftermarket High Performance
Connector Type USCAR (EV6)
Impedance 12.5 OHMS
Part Number MAZDA MIATA, Protege: 1200cc Black-Ops M-Series Fuel Injectors
Year(s) 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Make MAZDA
Model MIATA, MX-5 MIATA
Engine 4WD, L4, 1.8L, GAS, DX, L4, 1.5L, GAS, DX, L4, 1.8L, GAS, ES, L4, 1.8L, GAS, GT, L4, 1.8L, GAS, L4, 1.5L, GAS, L4, 1.6L, GAS, L4, 1.8L, GAS, LS, L4, 1.8L, GAS, LX, L4, 1.5L, GAS, LX, L4, 1.8L, GAS, MAZDASPEED, L4, 1.8L, Turbo, GAS, S, L4, 1.6L, GAS, S, L4, 1.8L, GAS, SE, L4, 1.6L, GAS, SE, L4, 1.8L, GAS
