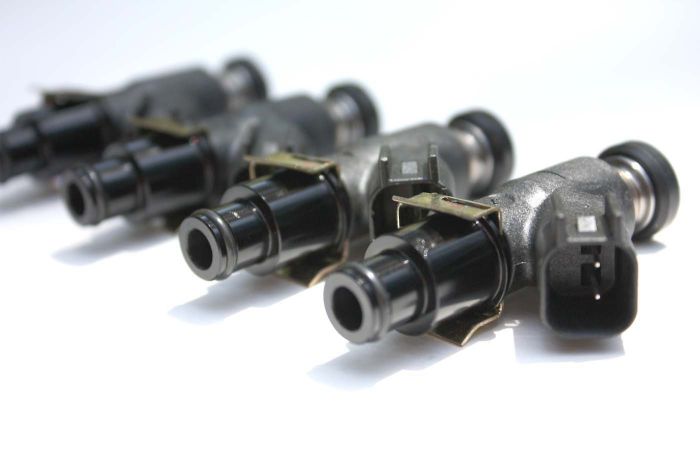

1000, 1200, 1600, Mazda RX-7, Black-Ops M-Series

Custom Fiveo/Delphi
Part Number: Mazda RX-7 Black Ops, Split Sets
Resistance: 12.5 OHMS
Connector Type: USCAR (EV6)
High Performance
$370.00 (USD)
Subtotal: $370.00
  • "Black-Ops M-Series"

  • RX-7 Long-length with 11mm top o-ring and 16mm bottom seal

  • PRICE INCLUDES Complete split sets - 2 of each of two different flow rates

  • Choose from 5 different split flow-rate sets
  • If you don't see the set you need - Call - Ask about a discount on custom sets.

Made in USA
ULTRA FAST RESPONSE TIMES:CONSISTENT EVEN AT VERY LOW PULSE WIDTHS. fast DEAD-TIMES ACROSS THE OPERATING VOLTAGE RANGE

  • FREE ELECTRICAL ADAPTERS/pigtails INCLUDED
  • COMPATIBLE WITH ALL PERFORMANCE FUELS - Gas/MTBE, E85, Q16, etc.
  • STAINLESS STEEL Construction

Fuel Injector Specifications:
Fuel Delivery: Single-hole ball valve/flat plate (for maximum fuel atomization).
Coil Resistance: 12.5 OHMS (high-impedance)
Flow-Matched sets are delivered in flow rates at or very near the advertised flow rate (you will get a set that is exactly flow-matched to within a best-in-the-business 0.5-1.0% -- guaranteed).
Minimum Pulse Width: 1.4 ms

With your order you will receive a complete flow-data-sheet showing actual tested flow rates for your individual injectors (see photos)
Data sheet includes static flow data at 3 Bar (43.5 psi), 3.5 Bar (50.8 psi) and 4 Bar (58.0 psi). Black-Ops injectors can operate at 100+ psi.
Also included: Dynamic flow data at 3 Bar at 6000 rpm and 5.0 ms and idle data at 800 rpm and 1.5 ms
Full latency (dead-time/offsets) table from 8 volts to 18 volts at 3 Bar

Injector Dimensions:

Electrical connector type: USCAR
Overall length: 72 mm - approx. 2.9 in
Body Diameter: 17 mm - 0.70 in
O-ring to o-ring, on center: 62 mm - approx. 2.5 in
Upper o-ring diameter: 11.5 mm - 0.45 in
Lower seal diameter: 16 mm - 0.60 in
O-ring/seal material: Viton





More Information
Manufacturer Custom Fiveo/Delphi
OEM or Aftermarket High Performance
Connector Type USCAR (EV6)
Impedance 12.5 OHMS
Part Number Mazda RX-7 Black Ops, Split Sets
Year(s) 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Make MAZDA
Model RX-7
Engine GXL, R2, 1.3L, GAS, R2, 1.1L, GAS,Carb, R2, 1.3L, GAS, R2, 1.3L, Turbo, GAS, TURBO, R2, 1.3L, Turbo, GAS, U, R2, 1.3L, GAS
