Black-Ops, Acura/HONDA, B-, D-, H-, F23, Engines
Fiveo Black-Ops
Part Number:
Black-Ops: Honda B-Series, H-Series, D-Series, F23
Flow Rate:
Please select an option below
Resistance:
12.5 Ohms
Connector Type:
USCAR (EV6)
High Performance
$65.00 (USD)

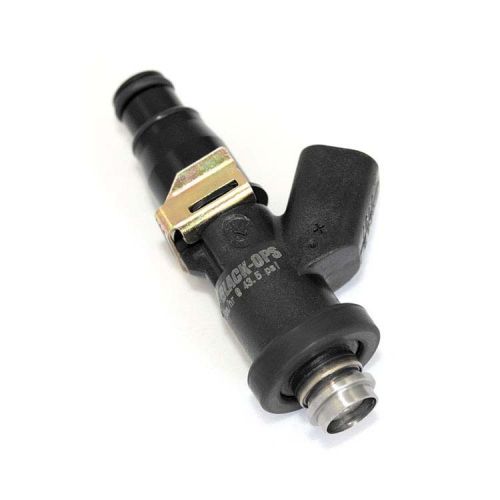

FIVEOMOTORSPORT, INC. introduces the BLACK-OPS FUEL INJECTOR - Made in U.S.A.
- Choose flow rate and one of 4 different connector types from drop-down menus
SPECIFICALLY FITTED:
Honda B/D/H-Series
Acura Integra 1.8L, 1.7L ALL (1991-2001)
Honda Civic B/D/H-Series OBD I-II (1992-2000)
F23A
- USE BLACK OPS FUEL INJECTORS FOR MODERATELY to HIGHLY-MODIFIED ENGINES
- Use with gasoline, E85 and other race and street performance fuels
- Complete tuning data sheet included with all matched sets
- Flow Balnced and Matched Sets when ordering 4 injectors
Fuel Injector Specifications:
Saturated-type
All stainless steel internal construction
Over-sized electrical coil
Single-hole disc/ball fuel nozzle
Minimum Pulse Width: 1.4 ms, 450cc; 2.0 ms, 1600cc
Dynamic flow tolerance: 1.5%
Consistent at very low pulse width - Minimum pulse with 1.4 ms
Min./max pressure: 36/116 psig
Coil Resistance: 12.5 Ohms
Voltage: 8-15 volts, Nominal 13.5 volts
Amperage: 1.0 amps
Dimensions:
Overall length: 74 mm - 2.9 in
Body Diameter: 17.1 mm - 0.70 in
O-ring to o-ring, on center: 64 mm - 2.6 in
O-ring diameter: 11.5, fuel rail
Bottom seal: 22 mm, intake
Rubber seal material: Viton - upper, lower
Manufacturer | Fiveo Black-Ops |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | USCAR (EV6) |
Flow Rate | Please select an option below |
Impedance | 12.5 Ohms |
Part Number | Black-Ops: Honda B-Series, H-Series, D-Series, F23 |
Make | ACURA, HONDA |
Model | ACCORD, CIVIC, CIVIC DEL SOL, INTEGRA, PRELUDE |
Engine | 1500 DX, L4, 1.5L, GAS, 1500 SI, L4, 1.5L, GAS, 2.0 SI, L4, 2.0L, B20A5, GAS, 2.0 SI, L4, 2.0L, GAS, 4WD, L4, 1.6L, D16A6, GAS, CRX SI, L4, 1.5L, GAS, CX, L4, 1.5L, D15B8, GAS, CX, L4, 1.5L, GAS, CX, L4, 1.6L, D16Y7, GAS, DX, L4, 1.5L, D15B2, GAS, DX, L4, 1.5L, D15B7, GAS, DX, L4, 1.6L, D16Y7, GAS, DX, L4, 1.7L, D17A1, GAS, EX, L4, 1.6L, D16A6, GAS, EX, L4, 1.6L, D16Y8, GAS, EX, L4, 1.6L, D16Z6, GAS, EX, L4, 1.7L, D17A2, GAS, GS, L4, 1.8L, B18A1, GAS, GS, L4, 1.8L, B18B1, GAS, GSR, L4, 1.7L, B17A1, GAS, GSR, L4, 1.8L, B18C1, GAS, HX, L4, 1.6L, D16Y5, GAS, HX, L4, 1.7L, D17A6, GAS, L4, 1.5L, GAS, LS, L4, 1.6L, D16A1, GAS, LS, L4, 1.8L, B18A1, GAS, LS, L4, 1.8L, B18B1, GAS, LX, L4, 1.5L, D15B2, GAS, LX, L4, 1.5L, D15B7, GAS, LX, L4, 1.6L, D16Y7, GAS, LX, L4, 1.7L, D17A1, GAS, LXI, L4, 2.0L, BS, GAS, LXI, L4, 2.0L, BT, GAS, RS, L4, 1.6L, D16A1, GAS, RS, L4, 1.8L, B18A1, GAS, RS, L4, 1.8L, B18B1, GAS, S, L4, 1.5L, D15B7, GAS, S, L4, 1.6L, D16Y7, GAS, SE, L4, 1.5L, GAS, SE, L4, 1.6L, D16A1, GAS, SI, L4, 1.6L, B16A2, GAS, SI, L4, 1.6L, D16A6, GAS, SI, L4, 1.6L, D16Y8, GAS, SI, L4, 1.6L, D16Z6, GAS, SPECIAL EDITION LS, L4, 1.6L, D16A1, GAS, SPECIAL EDITION, L4, 1.8L, B18B1, GAS, TYPE-R, L4, 1.8L, B18C5, GAS, VALUE PACKAGE, L4, 1.6L, D16Y7, GAS, VTEC, L4, 1.6L, B16A2, GAS, VTEC, L4, 1.6L, B16A3, GAS, VX, L4, 1.5L, D15Z1, GAS |
