550cc/min; BLACK-OPS - Sport Compact "LONG" - SAMPLE USE: 7MG, 2JZ, 13B

Custom Fiveo/Delphi
Part Number: M52M550-X17/Adapters
Flow Rate: Please select an option below
Resistance: 12.5 Ohms
$82.50 (USD)
Subtotal: $82.50

THIS LISTING INCLUDES ONE (1) FUEL INJECTOR AND ONE (1) ELECTRICAL CONNECTOR ADAPTER

FIVEOMOTORSPORT, INC. introduces the "BLACK-OPS M52" 550cc FUEL INJECTOR -
After several years of R&D and testing many different injector core/body configurations, Fiveomotorsport is releasing the new Black-Ops Series for sale to the auto enthusiast for street-performance vehicles.

  Made in the USA
• Robust coil design that delivers superfast response time great idle and lots of power
• All fuels compatible

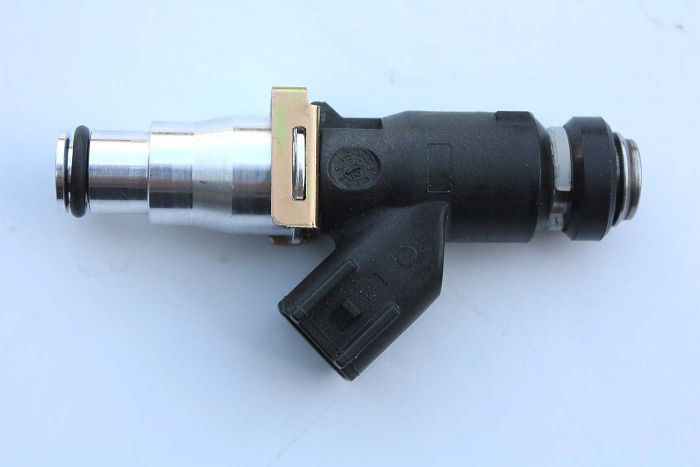

• All stainless steel internal parts/ and all fuel resistant plastic preassemble filter
• Highly reliable up to 90% duty cycle
• Consistent, revolving ball valve for flow rates from 550 to 1600cc
• 4 hole nozzle for flow rates between 320cc-550cc
• Flow rates ranging from 280cc--1600cc @ 3BAR
• Can be configured to fit any top-feed--US Domestic, European, & Asian Import application

Our custom-manufactured Black-Ops brings ultra-fast latency times never seen before in modern EV14/EV6-style high impedance fuel injectors.
Quicker than even the best low impedance injectors.
For example the dead-time at 14 volts is 0.550 ms.
MINIMUM PULSE WIDTH: 1.7 ms

FREE. Receive ELECTRICAL CONNECTOR ADAPTER with each injector. SEE PHOTOS.

The larger coil shows itself in another positive way in the new Black-Ops M52 fuel injector.
Fiveomotorsport is able to guarantee sets from 2 to 12 injectors matched statically and dynamically.

Fiveomotorsport's new single-hole w/diffuser plate, split-fountain fuel nozzle - WATCH VIDEO.
This new nozzle guarantees a tight cone spray throughout the rpm range. And where it gets really good is at high volume/high rpm.
Testing has been completed. Check out the video of the Black-Ops M80 operating at 7,200 rpm and a pulse width of only 2 ms.
Realize the test chamber is filing with Heptane, without mixing with air, under no pressure and no vacuum, unlike an actual engine combustion chamber.
Even with the simulated conditions you will still see the super-fine droplets of our new single-hole nozzle produces.
Our other video shows wide-open testing at 3 bar/43.5 PSI and pulse testing at up to 7 bar/101.5 PSI.
This injector can provide a smooth idle quality on most engines running all types of gasoline or E85.
We, of course recommend seeking a pro-tuner.

Fuel Injector Specifications:
Fuel Delivery: 4-hole disc with diffuser plate. (Maximum atomization).
Coil Resistance: 12.5 OHMS
You will get a set that is exactly matched within a best-in-the-business 0.7-1.0 %.
Dimensions:
Overall length: 76 mm - 3 in
Diameter: 17 mm - 0.70 in
O-ring to o-ring, on center: 64 mm - 2.5 in
Upper o-ring diameter: 12 mm - 0.50 in
Lower seal diameter: 16 mm - 0.63 in
O-ring/seal material: Viton

Item Condition:
Guarantee and Warranty assumes professional installation and tuning.
All of the Fiveomotorsport fuel injectors are shipped in brand-new condition unless otherwise stated as reconditioned or take-out injectors. All fuel injectors are covered by our warranty outlined below, unless otherwise stated.
Fiveo's Exclusive Warranty:
We stand behind all of our products with our 36 month/unlimited miles warranty. Within 7 days of your purchase date if you are not 100% satisfied, we will refund your purchase price for returned unused fuel injectors in their original packaging, minus shipping costs and up to a 15% restocking fee. If you ever have an injector go outside specification or fail for any reason when functioning within the stated operating conditions, we will replace it with a brand new fuel injector. You pay only the shipping costs. (Some racing applications may void this warranty).
Shipping and Handling Time:
All orders received by 2pm PST Monday-Friday will ship the same day. Orders received after 2pm on Friday will ship the following Monday. It is the buyer's responsibility to pay all customs fees, duties, import taxes, and related charges. Average delivery times are listed below:
USPS priority mail – 3 business days
USPS Express International – 5 to 8 business days
FedEx Overnight
FedEx 2-Day
