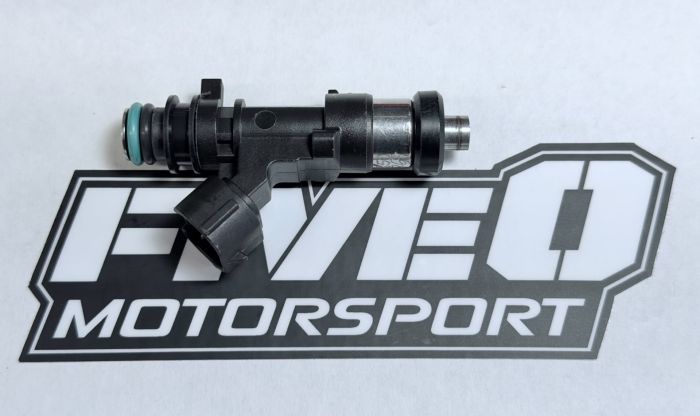

Motorcycle & ATV/UTV Fuel Injectors, VARIED Flow Rates
FIVEO-CUSTOM, GENUINE BOSCH
Part Number:
026M, MOTO, ATV
Flow Rate:
Please select an option below
Resistance:
12.5 OHMS
Connector Type:
Sumitomo
High Performance
$85.00 (USD)
- List price includes one (1) direct-fit, custom-manufactured fuel injector
- Flow-matched, EV14, 450cc and up to 1200cc
- High performance, High impedance
Raptor 700 ATV
2000-2012 Kawasaki ZX12, ZX12r, ZX1200r
2004-07 CBR1000
Yamaha Road Warrior
2002-08 Honda VTX 1800 V-Twin
BE CERTAIN TO ORDER THE EXACT PART FOR YOUR ATV OR MOTORCYCLE.
THE INJECTORS ARE DELIVERED WITH THEIR OWN PROPRIETARY O-RINGS/SEALS.
Direct fit: Does not require an electrical connector change. Ready to install on a modified engine.
FLOW CHART: Each set is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3, 3.5, and 4 BAR at 15%, 50% and 100% for each injector, along with a complete dead time (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Body Design: High carbon composite plastic
Injector type: Top feed, saturated
Fuel Nozzle: Multiple and Single-hole disc
Minimum Pulse Width: 1.3 - 2.0 ms
Sample latency (dead time): 0.65 ms at 14 volts (Complete table ships with each injector).
Length: 2.50 inches, 64 mm
Diameter: 0.60 inches, 16 mm
O-ring: 11.6 mm OD
Seal: 16 mm OD
Resistance: 12.5 Ohms
Electrical connector type: Sumitomo
Comprehensive Fiveo Warranty included. See out Warranty page.
Manufacturer | FIVEO-CUSTOM, GENUINE BOSCH |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | Sumitomo |
Flow Rate | Please select an option below |
Impedance | 12.5 OHMS |
Part Number | 026M, MOTO, ATV |
