240lbs/hr - EV14; Varied Fits Fuel Injectors, Methanol, E50, E85, All-racing fuels, 91-120 octane rating

FIVEO CUSTOM: Highly Modified Engines,
Part Number: U2525, M2525, B2525 Varied Fit with Pigtails
$200.00

LIST PRICE INCLUDES: ONE (1) FUEL INJECTOR WITH ELECTRICAL CONNECTOR PIGTAIL - ANY FIT CONFIGURATION.

Compatibility: Alcohol based fuels; Methanol and Ethanol; Gasoline with additives MTBE/nitromethane, nitroethane, and nitropropane.

NOMINAL STATIC FLOW RATES:
3.0 BAR, 43.5 PSI: 2385cc/min, 227lbs
3.5 BAR, 50.8 PSI: 2570cc/min, 245lbs
4.0 BAR, 58.0 PSI: 2755cc/min, 262lbs
5.0 BAR, 72.5 PSI: 3080cc/min, 293lbs
6.0 BAR, 87.0 PSI: 3365cc/min, 320lbs
7.0 BAR, 101.5 PSI: 3640cc/min, 346lbs
8.0 BAR, 116.0 PSI: 3890cc/min, 370lbs

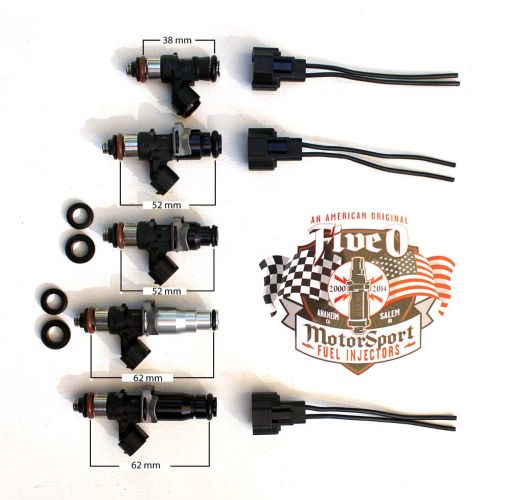

VARIED FITS FOR SPECIFIC APPLICATIONS WILL INCLUDED SOME OR ALL OR THE FOLLOWING: EXTENDERS, LOCKING CLIPS, O-RINGS/SEALS, PIGTAILS CONNECTORS (see photos).

Injector type: Saturated, top feed
Fuel nozzle: Convex, slotted multi-hole disc - WATCH VIDEO TO SEE SPRAY PATTERN, FUEL ATOMIZATION.
Coil Resistance: 9.5 Ohms
Body Design: EV14, internal filter

Dead Time/Offset Table (see photo).

Flow matched sets available.
Excellent pulse width and predictability: 2.0 ms for easy tuning and accurate compensations.
Injector Length: 50 mm
O-rings on center: 38 mm
Body Diameter: 16 mm
Top O-rings: 11.5 or 14.5 mm
Lower O-rings: 14.5 mm
Lower Seals: 16 mm or 22 mm (Honda only)
Electrical connector type: Sumitomo
Top Extenders: 12 mm, 24 mm; /11.5mm or 14.5 mm o-rings (see photos).

More Information
Manufacturer FIVEO CUSTOM: Highly Modified Engines,
OEM or Aftermarket No
Part Number U2525, M2525, B2525 Varied Fit with Pigtails
Year(s) 2016
Make CHEVROLET, CHRYSLER, DODGE, FORD, HONDA, PONTIAC
Model 300, ACCORD, CAMARO, CHALLENGER, CHARGER, CIVIC, CIVIC DEL SOL, CORVETTE, FOCUS, GT, GTO, MUSTANG, S2000
Engine C SRT8, V8, 6.1L, W, GAS, C, V8, 5.7L, EZD, T, GAS, C, V8, 5.7L, H, GAS, CR, L4, 2.2L, F22C1, GAS, CX, L4, 1.5L, D15B8, GAS, DAYTONA R/T, V8, 5.7L, H, GAS, DX, L4, 1.5L, D15B7, GAS, DX, L4, 2.2L, F22B2, GAS, EX, L4, 2.2L, F22B1, GAS, GT, V8, 4.6L, GAS, GT, V8, 4.6L, H, GAS, L4, 2.0L, F20C1, GAS, L4, 2.2L, F22C1, GAS, LX, L4, 1.5L, D15B7, GAS, LX, L4, 2.2L, F22B2, GAS, R/T, V8, 5.7L, EZC, T, GAS, R/T, V8, 5.7L, EZD, T, GAS, R/T, V8, 5.7L, H, GAS, S, L4, 1.5L, D15B7, GAS, SHELBY GT, V8, 4.6L, H, GAS, SHELBY GT500, V8, 5.4L, S, Super, GAS, SHELBY GT500KR, V8, 5.4L, S, Super, GAS, SI, L4, 1.6L, B16A2, GAS, SI, L4, 1.6L, D16Y8, GAS, SI, L4, 2.0L, K20A3, GAS, SIR, L4, 2.0L, K20A3, GAS, SRT8, V8, 6.1L, W, GAS, SS, V8, 6.2L, LS3, W, GAS, SVT, L4, 2.0L, 5, GAS, V8, 5.4L, S, Super, GAS, V8, 6.0L, U, GAS, V8, 6.2L, LS3, W, GAS, ZR1, V8, 6.2L, LS9, R, Super, GAS, SS, V8, 6.2L, L99, J, GAS
