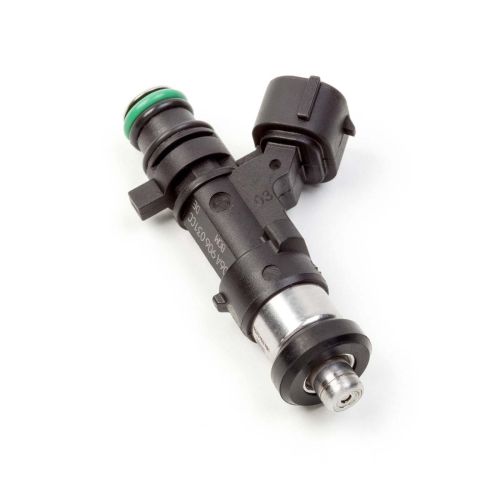

750cc Bosch - CDH Series Fuel Injectors

FiveoMotorsport / Bosch
Part Number: CDH750
Flow Rate: 750cc
Resistance: 12.5 Ohms
Connector Type: Sumitomo
High Performance
$95.00 (USD)
Subtotal: $95.00

This is a Fiveomotorsport custom, genuine Bosch fuel injectors
Use for modified engines only.

  • 750cc, high-performance fuel injectors
  • All new O-rings/seals supplied for installation

Each set is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3.0, 3.5, and 4.0 BAR at 15%, 50% and 100% for each injector, along with dead time (latency) period at 14 volts

Use for Super Street or racing 4 cylinder, single or multi-valve, normally-aspirated or forced-air induction engine applications:

2002-05 Subaru 2.0L 4 cylinder Turbo,

2001-07 Hyundai Tiburon (with 14 mm intake orings)

2001-03 Mazda (Speed) Protege,

1997-04 Mitsubishi.

This is a high performance, high-volume fuel injector.

The fuel delivery is from a single-hole disc that delivers a medium-wide cone-shape spray pattern for maximum fuel atomization.

  • Body Design: Composite plastic
  • Flow rate at 3 bar: 750cc/min
  • Length: 2.52 inches, 64 mm
  • Body Diameter: 0.63 inches, 16 mm
  • O-rings: Top 11.5mm OD/Bottom 16mm seal
  • Resistance: 14.0 Ohms
More Information
Manufacturer FiveoMotorsport / Bosch
OEM or Aftermarket High Performance
Connector Type Sumitomo
Flow Rate 750cc
Impedance 12.5 Ohms
Part Number CDH750
Year(s) 2016
Make MITSUBISHI
Model ECLIPSE, GALANT, LANCER, MIRAGE, OUTLANDER
Engine ES, L4, 2.0L, 4G94, E, GAS, GS, L4, 2.4L, 4G64, G, GAS, GT, V6, 3.0L, 6G72, H, GAS, GTS, V6, 3.0L, 6G72, H, GAS, L4, 1.8L, 4G93, C, GAS, L4, 1.8L, 4G93, GAS, L4, 2.4L, 4G64, G, GAS, L4, 2.4L, 4G64, GAS, LS, L4, 1.8L, 4G93, C, GAS, OZ RALLY, L4, 2.0L, 4G94, E, GAS, SE, L4, 2.0L, 4G94, E, GAS, SPYDER GS, L4, 2.4L, 4G64, G, GAS, SPYDER GT, V6, 3.0L, 6G72, H, GAS, SPYDER GTS, V6, 3.0L, 6G72, H, GAS, SPYDER, L4, 2.4L, 4G64, G, GAS, SPYDER, V6, 3.0L, 6G72, H, GAS, V6, 3.0L, 6G72, H, GAS
