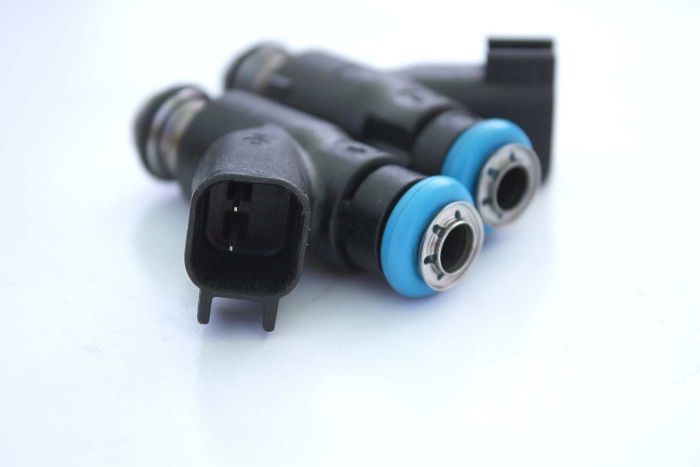

HARLEY DAVIDSON 7.5 g/sec FUEL INJECTORS - Matched Pair

Custom Fiveo/Delphi
Part Number: M60U630
Resistance: 12.5 Ohms
Connector Type: USCAR (EV6)
High Performance
$209.95 (USD)
Subtotal: $209.95

USAGE: Highly modified engines.
60 lbs/hr, 7.5 g/sec, Fiveomotorsport, Black-Ops M60 Fuel Injectors

FITS: Harley-Davidson

BRAND NEW, custom milled/custom flow-matched - Fuel injectors never more than 0.5% difference in flow rate.
Check our new single-hole, wide spray nozzle for maximum fuel atomization.

LIST PRICE INCLUDES; One fuel injector, or a flow-matched pair (set of 2).  See menu options.

This injector is rated as FLEX and is recommended for all types of fuel; including pump gas, Q16, VP 120 octane racing fuel, and E85



Use for modern super street or racing applications.

Body Design: Stainless steel and composite plastic

Injector type: Saturated

Flow rate: 60lbs/hr at 43.5 psi - 630cc/min at 3 BAR - 7.5 g/sec at 3 BAR
Latency (dead time): 0.550 at 14 volts - Complete latency table with pair/set.
Minimum Pulse Rate: 1.5 ms

Coil Resistance: 12.5 OHMS

Total length: 2.10 inches, 54 mm

Body Diameter: 0.667 inches, 17 mm

O-ring to o-ring length, on center: 1.850 inches, 46.5 mm

O-ring Diameter: Upper and lower, Viton, 14.5 mm

Compact, EV6, U.S CAR electrical connector

More Information
Manufacturer Custom Fiveo/Delphi
OEM or Aftermarket High Performance
Connector Type USCAR (EV6)
Impedance 12.5 Ohms
Part Number M60U630
