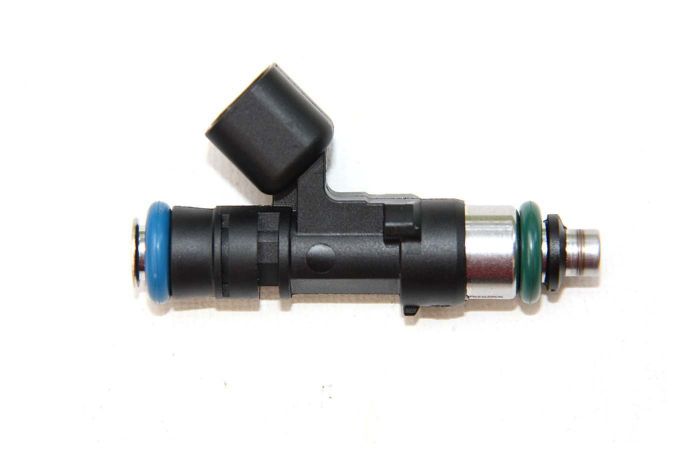

Genuine Ford Mustang 5.2L Hand-built Voodoo V8 - Fuel Injectors

Ford DR3V-AA, EV14-style 16-hole Fuel Injectors - Made in Germany

This fuel injector has 4 center holes with 12 additional holes radiating around the outer edge of the nozzle plate.

The flow pattern is split into two streams. See photo.

Additionally the entire flow can be directed toward or away from valves.

Genuine Ford Motorcraft part number: DR3V-AA
Factory matched sets available

Specifications: Coil Resistance: 12.5 Ohms (Will work with all factory ECM/PCM injector drivers.)
Nozzle: 16-hole, 25 degree, split cone
Electrical Connector: US CAR (New-style EV6 / LS2)
Fitted with Viton upper and lower o-rings, 14.5 mm
Actual Tested Static Flow Rate:
@ 43.5 PSI (300 kPa): 6.8 g/s, 570 cc/min
@ 50.8 PSI (350 kPa): 7.4 g/s, 614 cc/min
@ 58.0 PSI (400 kPa):  --- g/s, 662 cc/min
Overall Length: 65.5mm
Dimensions: 53.5mm o-ring center to center
