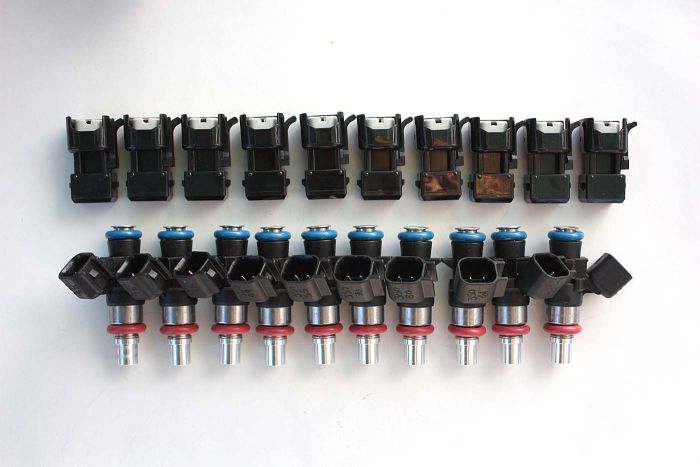

52 LBS Dodge Viper SRT10

Generation II Viper - Brand new high-performance, Bosch EV14 custom flow-matched, 550cc/min, 52lb/hr fuel injector set.
This is a direct-fit fuel injector application for the SRT-10 - Nothing else to buy.

USE FOR A HIGHLY MODIFIED ENGINE ONLY

FLOW CHART: Each set is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3, 3.5, and 4 BAR at 25%, 50% and 100% for each injector, along with dead time (latency) at 14 volts. Flow matching was done with industry-standard equipment of the highest quality. The test was performed at varying temperatures to achieve realistic results.
Our injector is a better choice for most modders and tuners.
Custom-milled from brand new American/German/Japanese-made fuel injector "cores" in large-quantity batches to achieve the highest quality product. The resulting sets are FLEX or all-fuels rated; including all gasolines - oxygenated gasoline, 102-110 octane (MTBE), E100, E-85. The finished injectors are then flowed and inscribed with a control number. Data is recorded for each injector. They are then carefully selected into matched sets ready for shipping.
You don't get this kind of technology from an the competition.

Injector type: "Filterless" EV14
Electrical connector w/adapter: Minitimer

Tested Static Flow Rates:
550 cc/min at 3.0 BAR (52 lbs/43.5 PSI)
Dead time: 0.75 ms at 14 volts

(Some slight variation in flow rate can be expected from set to set.

Resistance: 12.5-14.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Pressure: Min. 36 PSI (2.5 bar), Max. 101 PSI (7 BAR)
Surface finish: Black composite
All Viton 14 mm o-rings Included for installation.
Fuel injector dimensions:
Overall length: 1.9 in/50.2 mm
O-rings on center: 1.5 in/37.5 mm
Diameter: 0.6 in/15.2 mm

If you are supercharging or upgrading the engine you can use this fuel injector.

You receive the highest quality fuel injectors for superstreet and racing applications.

As part of our quality control, each injector has been marked/inscribbed by our technician with an individual control number and is part of a unique flow-matched set.

Fiveomotorsport is a respected name in high performance and racing parts.

This fuel injector set has excellent high and low pulse width response times.

These sets are very consistent and will require no more than 1% trim for easy tuning and accurate compensations.

Item Condition:
All of the Fiveomotorsport fuel injectors are shipped in brand-new condition unless otherwise stated as reconditioned or take-out injectors. All fuel injectors are covered by our warranty outlined below, unless otherwise stated.
Fiveo's Exclusive Warranty:
We stand behind all of our products with our 36 month/unlimited miles warranty.  If you are not 100% satisfied, we will refund your purchase price for returned unused fuel injectors in their original packaging, minus shipping costs and up to a 15% restocking fee.  If you ever have an injector go outside specification or fail for any reason when functioning within the stated operating conditions, we will replace it with a brand new fuel injector.  You pay only the shipping costs. (Some racing applications may void this warranty).
