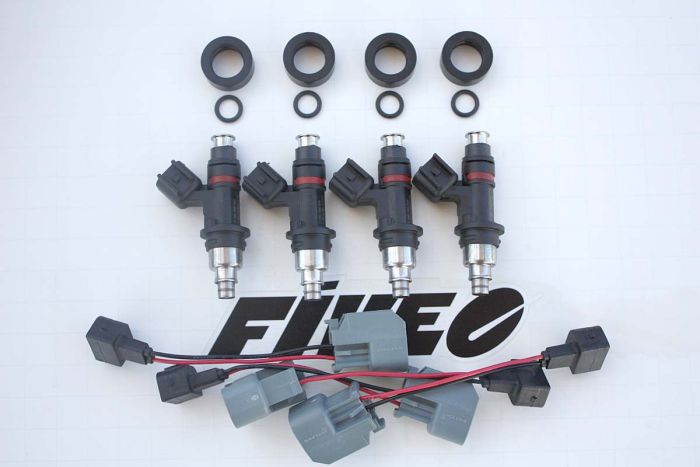

500 cc - Bosch; Honda S2000, Gen I Hayabusa, Matched SET

Bosch
Part Number: 117F515 / Adapters
Resistance: 12.5 Ohms
Connector Type: USCAR (EV6)
High Performance
$339.50 (USD)
Subtotal: $339.50

USE FOR MODIFIED ENGINES ONLY with 265-325 all-motor horsepower.

Specifically Fit:
Honda F-Series, S2000,
Gen I Hayabusa GSXR 1300 R,
2001-03 GSXR1000;


Bosch EV14, high performance, high impedance, flow-matched fuel injectors.
This is a genuine injector custom fitted for F-Series Honda.

  • 6-hole fuel delivery nozzle with a wide cone spray for superior fuel atomization.

  • 3 BAR Latency (dead time/offset): 14 volts, 0.554 ms; 12 volts, 0.665 ms

  • Excellent low pulse width response down to 1.4 ms.



Injector type: EV14

Flow rate:  500 cc/min at 3 BAR (43.5 psi)

Spray type: wide cone, maximum fuel atomization

Total Length: 2.5 inches, 65.5 mm

Center of upper o-ring to bottom of lower seal:  50 mm

Resistance: 12.5 OHMS

Fuel types: All type gasoline, Methanol, E85, E25, E10



More Information
Manufacturer Bosch
OEM or Aftermarket High Performance
Connector Type USCAR (EV6)
Impedance 12.5 Ohms
Part Number 117F515 / Adapters
