Denso 380cc, 36lbs/hr, Asian Import fit
Denso UPGRADE
Part Number:
F87EM380 / Pigtails
Flow Rate:
Please select an option below
Resistance:
14 Ohms
High Performance
$77.50 (USD)
Denso high-performance, high resistance, custom fitted fuel injectors.
- Custom fit for Asian import 4 and 6 cylinder engines that require a very linear and easy to tune single-pintle fuel injector.
- Listed Price is for a single injector with pigtail
- Each set is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3.0, 3.5, and 4.0 BAR at 15%, 50% and 100% for each injector, along with dead time (latency values) from 8 to 18 volts.
Flow-matched to within 1.5%.
This is a saturated-type fuel injector. Denso fuel injector for import super street or racing applications.

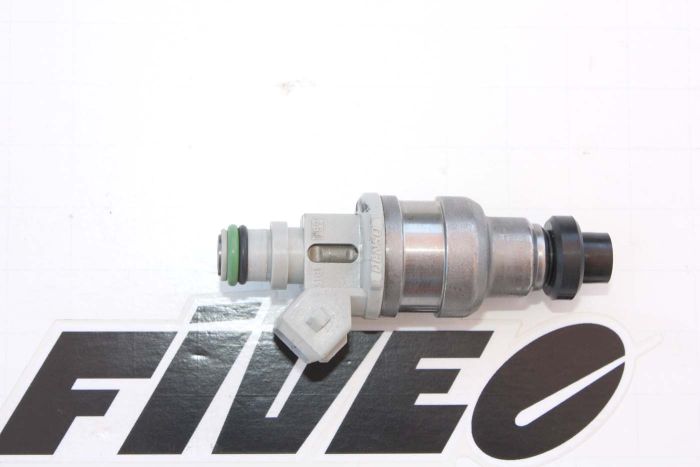

Fiveo provides individual flow data sheets showing the flow and pressure for each injector. Notice the control numbers etched into the body of each injector (see photos).
Fiveomotorsport guarantees injector sets to be matched according to our published specifications.
Part number: F87EM380 (pigtail connector included)
Injector type: Single pintle, saturated
Connector type: Jetronic (EV1)
Flow Rates:
36lbs/hr, 380cc/min at 43.5 PSI (3 BAR)
Excellent linearity and easy tuning.
Resistance: 12.8 Ohms
Voltage: 8-15 Volts, Nominal 14.5 Volts
Amperage: 1.5 Amps
Pressure: Min. 36 PSI (2.5 bar), Max. 101.5 PSI (7 bar)
All VITON o-rings/seals included for installation.
Manufacturer | Denso UPGRADE |
---|---|
OEM or Aftermarket | High Performance |
Flow Rate | Please select an option below |
Impedance | 14 Ohms |
Part Number | F87EM380 / Pigtails |
Year(s) | 2016 |
