DODGE VIPER; Bosch EV-14, OEM-350cc , UPGRADES-450cc, 550cc, 750cc
Custom Bosch/Fiveo
Part Number:
233US/Adapters; SRT10 VIPER V-10 8.3l
Resistance:
12.5 Ohs
Connector Type:
USCAR (EV6)
OEM
$80.00 (USD)
-
Generation II Viper V-10 8.3 2003-up
-
Generation II Ram V-10 8.3 2004-up
-
Brand new high-performance - Flow Matched Sets
-
EV14 custom flow-matched
-
Requires professional re-tuning.

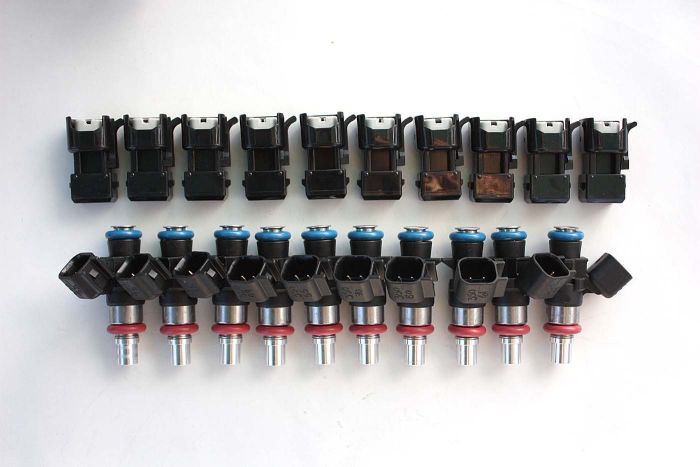

This is a direct-fit fuel injector application for the SRT-10 - ADAPTER SET INCLUDED
350cc: USE THIS FUEL INJECTOR ON A STOCK ENGINE - UPGRADE THE OE FUEL INJECTORS TO EV14 - USES OE ECU - NOTHING ELSE TO BUY
DO NOT RE-TUNE. DO NOT RE-FLASH COMPUTER.
FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
The finished injectors are then flowed and inscribed with a control number.
Tested data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.
FLOW CHART: Each set is sold with a complete and unique flow-data chart indicating individually tested static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.
Injector type: EV-14 with internal filters, saturated
Electrical connector w/adapter: Minitimer
Tested Static Flow Rates:
350 cc/min at 3.0 BAR (32 lbs/43.5 PSI)
Dead time: 0.555 ms at 14 volts
Very slight variation in flow rate can be expected from set to set.
Resistance: 12.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Pressure: Min. 36 PSI (2.5 bar), Max. 116 PSI (8 BAR)
Surface finish: Black composite
All Viton 14 mm o-rings Included for installation.
Fuel injector dimensions:
Overall length: 1.9 in/50.2 mm
O-rings on center: 1.5 in/37.5 mm
Diameter: 0.6 in/15.2 mm
Manufacturer | Custom Bosch/Fiveo |
---|---|
OEM or Aftermarket | OEM |
Connector Type | USCAR (EV6) |
Impedance | 12.5 Ohs |
Part Number | 233US/Adapters; SRT10 VIPER V-10 8.3l |
Make | DODGE |
Model | RAM 1500, VIPER |
Engine | SRT-10 ACR, V10, 8.4L, Z, GAS, SRT-10, V10, 8.3L, H, GAS, SRT-10, V10, 8.3L, Z, GAS, SRT-10, V10, 8.4L, Z, GAS, SRT10, V10, 8.3L, H, GAS, SRT10, V10, 8.3L, Z, GAS |
