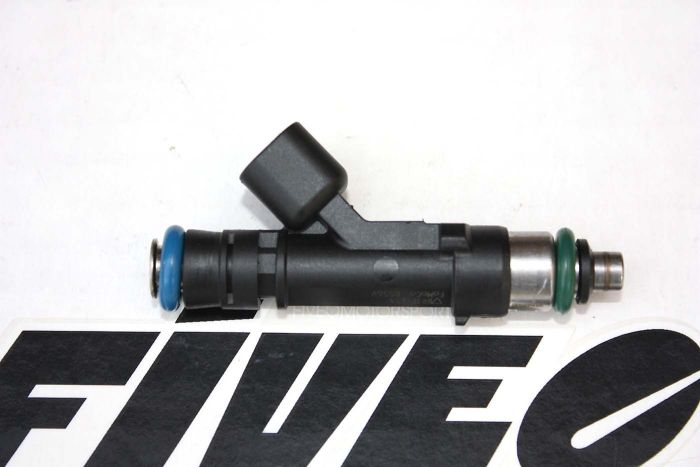

VARIED FLOW RATES; EV14-style, US-CAR, LONG - U.S. Domestic Fit

USE FOR HIGHLY MODIFIED, SUPERCHARGED & TURBOCHARGED ENGINES ONLY

• LIST PRICE INCLUDES ONE (1) FUEL INJECTOR
• DYNAMICALLY AND STATICALLY BALANCED FLOW MATCHED SETS
• BRAND NEW EV-14-style
• Excellent low pulse width response with predictable response



Genuine EV14-style fuel injectors

 Delivered in Flow-Matched Sets - Includes tuning data

RATED FOR ALL-KNOWN FUELS; Gasoline, MTBE, E10, E25, E85, M100, Q VP racing, etc.
Complete latency tables at 3.0, 4.1, 4.8, 5.5, 6.2, & 6.9 BAR supplied with each set
Dynamic and static flow balanced sets are matched to within 1.0%

Specifications:
This injector will function at rail pressures in excess of 130 psi, 9 bar.
Excellent low pulse width response with predictable response down to 1 ms.
Injector Body Design: EV14, black composite

Available flow rates:
380cc and 450cc - 4-hole; 550cc, 650cc, 750cc, 850cc, 1000cc, 1200cc - Single-hole; maximum fuel atomization

Dimensions:
Overall Length: 3.0 inches, 74.5 mm
Installation Length: 2.50 inches/60 mm
Electrical connector type: EV6, EV14, USCAR
Body Diameter: 16 mm
Orings: Viton rubber, 14.5 mm
Resistance: 12.5 Ohms

*All fuel injector specifications meet or exceed the manufacturer's specification standard.
