055U, POLARIS, RZR/Ranger 800, RZR 700; Varied Flow Rates, MATCHED
FiveoMotorsport / Bosch
Part Number:
055U
Resistance:
12.5 Ohms
Connector Type:
USCAR (EV6)
High Performance
$205.00 (USD)
Use these Fiveo EV14 fuel injectors for MODIFIED ENGINES ONLY

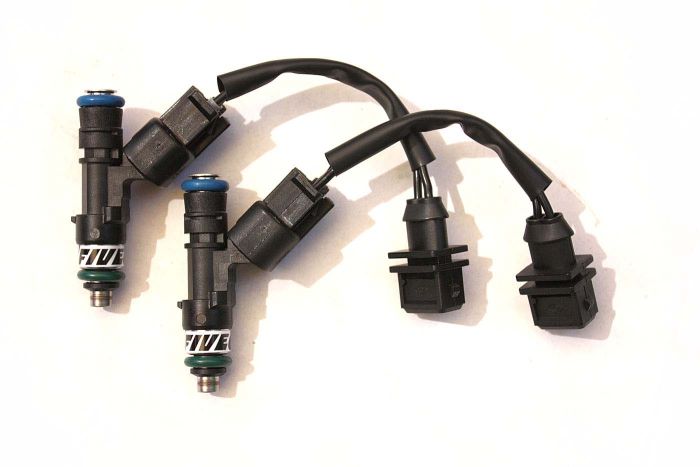

LIST PRICE INCLUDES: 1 Pair (two) FUEL INJECTORS with Plug and Play Connectors
FLOW CHART: Each set is sold with a complete flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR. As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle. Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.
E85 Fuel usage - Because of the high-H2O levels, ethanol will not rust but tends to "dry" the orifices in stainless-steel constructed fuel injectors. Customers should beware that this can be a problem with some fuel injectors and may cause a "sticking" problem. Periodic lubrication is recommended if your engine will be left without starting/running for extended periods - weeks to months - at a time.
Injector type: EV14 - (OEM EV6, 200cc)
Flow pattern: Varied cones
Tested Flow Rates Vary:
360 to 1000cc/min at 3 BAR
Resistance: 12.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Pressure: Min. 36 PSI (2.5 bar), Max. 130 PSI (9 bar)
Surface finish: Black composite
All Viton 14.5 mm o-rings Included for installation.
Manufacturer | FiveoMotorsport / Bosch |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | USCAR (EV6) |
Impedance | 12.5 Ohms |
Part Number | 055U |
