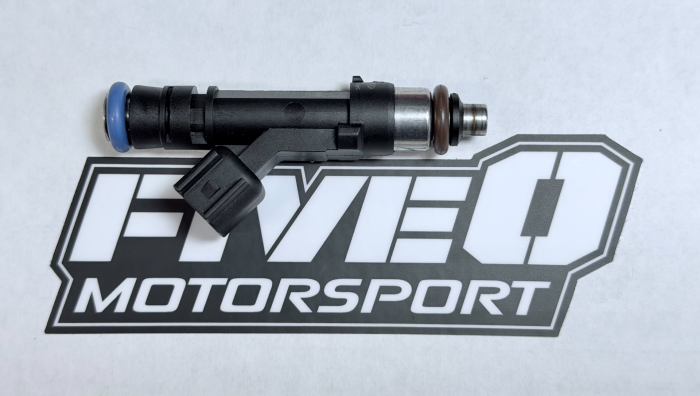

550cc EV6/EV14, Polaris Sling Shot Ecotec
Bosch/Custom Fiveo
Part Number:
138U550, 550cc
Resistance:
12.5 Ohms
Connector Type:
USCAR (EV6)
High Performance
$88.50 (USD)
Do not use for stock replacement, OEM, or original equipment replacements.
This injector is for highly modified engines only with high horsepower.
- Price listed is per single (1) fuel injector
- Matched sets available
- Direct-fit.
- Nothing else to buy for installation.
FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product. Our injectors are all-fuels rated; including gasoline (MTBE), and E-85. The finished injectors are then flowed and inscribed with a control number. Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.
FLOW CHART: Each set is sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR. As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle. Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.
Flow rate:
550 cc/min (52lbs) at 3 bar (43.5 psi) (Complete flow chart is delivered with each set).
Dead Time (latency): 0.455 ms at 14 Volts, Complete latency table supplied with each set.
This injector will function at rail pressures in excess of 100 psi, 7 bar.
Excellent low pulse width response with predictable response down to 1 ms.
Excellent atomization for modern multi-valve 4 cylinder engines.
Injector Body Design: EV6, black composite plastic
Flow nozzle: Single-hole (See photo). This ball/disc will help spread the fuel spray for modern single- and multi-valve engine applications.
Electrical connector type: USCAR
Length: 3 in., 74 mm
Diameter: 19 mm
Orings: Viton, top and bottom, 14.5 mm
Resistance: 14.5 Ohms
(All fuel injector specifications meet or exceed the manufacturer's specification standard).
Manufacturer | Bosch/Custom Fiveo |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | USCAR (EV6) |
Impedance | 12.5 Ohms |
Part Number | 138U550, 550cc |
