138M 1000cc, 1985-2005, Asian Sport Compact-LONG, Matched
Custom Fiveo
Part Number:
138M1000 / Pigtail
Resistance:
12.5 Ohms
Connector Type:
USCAR (EV6)
High Performance
$110.00 (USD)
- Flow Matched Sets complete with new o-rings and ready to install
- Sport Compact, Long Fit
This injector is identical to our competitors 1000cc, but at a lower price point
Price includes:

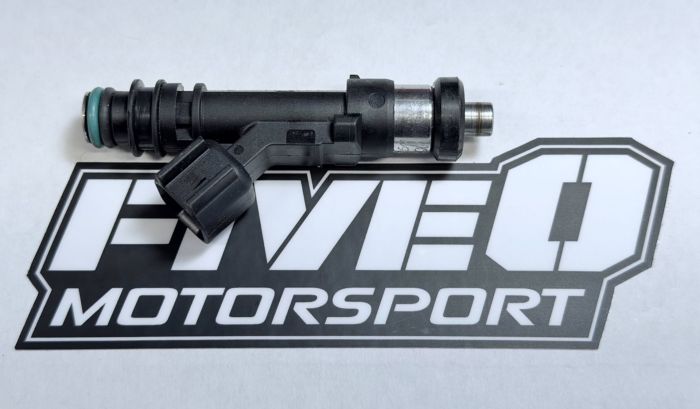

- 1 - Brand new Bosch EV14 1000cc/min Fuel Injector with connector pigtail (see photos)
- Purchasing a matched set guarantees a unique flow data chart with latency table
FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
The finished injectors are then flowed and inscribed with a control number.
Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.
FLOW CHART: Each set is sold with a complete and unique flow-data chart indicating individually tested static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.
Specifications:
Injector type: EV14, saturated
Fuel Delivery: Single-hole disc
Electrical Connector: U.S. CAR
Spray: Wide cone spray pattern (compatible replacement for cone or split stream pattern)
Length: 3 inches, 74 mm
Body Diameter: 16 mm
O-rings: Viton Top 12mm o-ring and 16mm lower seal
Resistance: 12.5 Ohms
Fuel Types: Pump gas, Oxy-gas/race-gas, E10, E85
All fuel injector specifications meet or exceed the manufacturer's specification standard.
Manufacturer | Custom Fiveo |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | USCAR (EV6) |
Impedance | 12.5 Ohms |
Part Number | 138M1000 / Pigtail |
Year(s) | 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 |
Make | MAZDA, MITSUBISHI, NISSAN, TOYOTA |
