1200cc, Peak & Hold, Asian Import-LONG, Flow-Matched

Fiveomotorsport
Part Number: 10399M1200 / Pigtails
Resistance: 2.5 Ohms
Connector Type: USCAR (EV6)
High Performance
$150.00 (USD)
Subtotal: $150.00

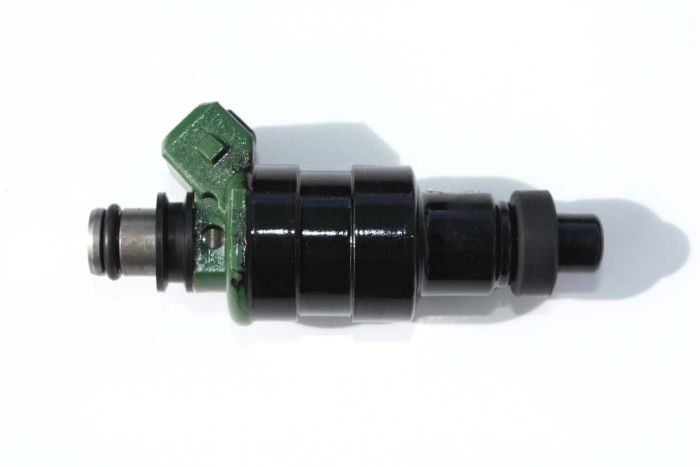

Custom fitted and flow-matched Fiveo "Asphalt Series" high performance 1200cc/min fuel injectors.
This is a modified fuel injector. - We custom manufacture brand new Japanese-made fuel injector cores in large-quantity batches to achieve the highest quality product.

Use for imports, Toyota, Mitsubishi, Mazda, etc., with 12mm/16mm seals for fuel rail/intake.

  • Price listed is per injector.  Multiple injectors purchased will be delivered in flow-matched sets.

All O-rings Included for installation.
EV1 electrical connector pigtail included.



FLOW CHART: Each set is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3, 3.5, and 4 BAR at 25%, 50% and 100% for each injector, along with a complete dead time (latency) table. Flow matching was done with industry-standard equipment of the highest quality. The test was performed at varying temperatures to achieve realistic results.

Fiveo's Exclusive Guarantee: If you ever have an injector go outside spec or fail for any reason when functioning within the stated operating conditions, We will replace it with a brand new fuel injector. You are purchasing a brand new high performance fuel injector.



Asphalt Series

Flow Rate: 1200cc/min at 43.5 PSI

Flow Rate: 114lbs/hr at 43.5 PSI

Resistance: 2.5 - 3.2 Ohms

Voltage: 8-15 Volts, Nominal 13.5 Volts

Amperage: 1.0 Amps

Minimum pulse width: 1.7-1.8 ms

Excellent atomization for medium compression, single-and multi-valve engines.

Will not require more than 1% trim

Pressure: Min. 36 PSI (2.5 bar), Max. 101.5 PSI (7 bar)

Latency (dead time): 0.555 at 14 volts - Complete latency table comes with set.

Surface finish: green top/black enamal

Easy tuning and accurate compensations.



More Information
Manufacturer Fiveomotorsport
OEM or Aftermarket High Performance
Connector Type USCAR (EV6)
Impedance 2.5 Ohms
Part Number 10399M1200 / Pigtails
Year(s) 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Make MAZDA, MITSUBISHI
Model ECLIPSE, LANCER, RX-7
Engine EVOLUTION MR, L4, 2.0L, 4G63, C, Turbo, GAS, EVOLUTION MR, L4, 2.0L, 4G63, D, Turbo, GAS, EVOLUTION RS, L4, 2.0L, 4G63, C, Turbo, GAS, EVOLUTION RS, L4, 2.0L, 4G63, D, Turbo, GAS, EVOLUTION SE, L4, 2.0L, 4G63, C, Turbo, GAS, EVOLUTION, L4, 2.0L, 4G63, C, Turbo, GAS, EVOLUTION, L4, 2.0L, 4G63, D, Turbo, GAS, GST, L4, 2.0L, 4G63, F, Turbo, GAS, GSX, L4, 2.0L, 4G63, F, Turbo, GAS, GXL, R2, 1.3L, GAS, L4, 2.0L, 4G63T, Turbo, GAS, R2, 1.3L, GAS, R2, 1.3L, Turbo, GAS, SPYDER GST, L4, 2.0L, 4G63, F, Turbo, GAS, SPYDER, L4, 2.0L, 4G63T, Turbo, GAS, TURBO, R2, 1.3L, Turbo, GAS, U, R2, 1.3L, GAS
