1000cc Fuel Injectors, Nissan 370Z, 350Z, GT-R R35
NISSAN, FiveoMotorsport / Bosch
Part Number:
055U1000
Resistance:
12.5 OHMS
Connector Type:
USCAR (EV6)
High Performance
$125.00 (USD)

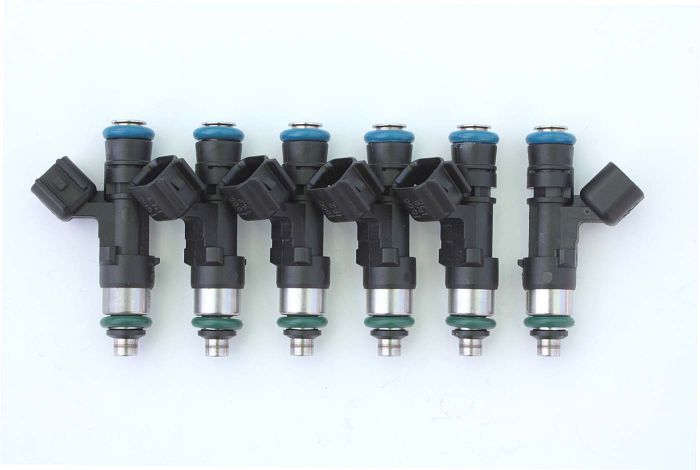

- Bosch EV-14, 1000 cc/min fuel injectors
- This is the identical fuel injector copied by ID for their 1000cc fuel injectors but at a lower price point.
- USE FOR HIGHLY MODIFIED ENGINES ONLY
- Nissan GT-R, V6, 3.8L, VR38DETT, Twin-Turbo, 350Z; V6, 3.5L, VQ35DE, 370Z,
- LIST PRICE INCLUDES A SINGLE (1) FUEL INJECTOR (o-rings included)
- Choose connector type from menu
FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
Injectors are flow-tested, balanced and inscribed with a control number.
Data is recorded for each injector.
The fuel injectors are then grouped into flow-matched sets ready for delivery
FLOW CHART: sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.
1000cc Fuel Injector Specs:
Fuel Pressure Range: |
Min. 3 Bar (43.5 psi) – Max. 7 Bar (101.5 psi) |
Flow Rates: |
Nominal flow rate 1000 cc/min @ 3.0 Bar (43.5 psi) |
Minimum Pulse Width: |
1.0 ms |
Coil Impedance: |
High Impedance, 12.5 Ohms |
Fuel Compatibility: |
All fuel types |
Maximum Duty Cycle: |
95% |
Electrical Connector Type: |
USCAR / EV14 |
Upper O-ring: |
14mm, Viton Material |
Lower O-ring: |
14mm, Viton Material |
Manufacturer | NISSAN, FiveoMotorsport / Bosch |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | USCAR (EV6) |
Impedance | 12.5 OHMS |
Part Number | 055U1000 |
Make | NISSAN |
Model | 350Z, 370Z, GT-R, NV3500 |
Engine | ENTHUSIAST, V6, 3.5L, VQ35DE, GAS, ENTHUSIAST, V6, 3.5L, VQ35HR, GAS, GRAND TOURING, V6, 3.5L, VQ35DE, GAS, GRAND TOURING, V6, 3.5L, VQ35HR, GAS, NISMO, V6, 3.5L, VQ35HR, GAS, PREMIUM, V6, 3.8L, VR38DETT, Turbo, GAS, TOURING, V6, 3.5L, VQ35DE, GAS, TOURING, V6, 3.5L, VQ35HR, GAS, TOURING, V6, 3.7L, VQ37VHR, GAS, TRACK, V6, 3.5L, VQ35DE, GAS, V6 3.7L 3696CC, V6, 3.5L, VQ35DE, GAS, V6, 3.5L, VQ35HR, GAS, V6, 3.7L, VQ37VHR, GAS, V6, 3.8L, VR38DETT, Turbo, GAS, V8 5.6L 5552CC |
