Bosch EV-14, 1000cc, 96lb, Standard Length, 2.5 in.

FiveoMotorsport / Bosch
Part Number: 055U1000, Universal Fit
Flow Rate: 1000cc
Resistance: 12.5 Ohms
Connector Type: USCAR (EV6)
High Performance
$125.00 (USD)
Subtotal: $125.00

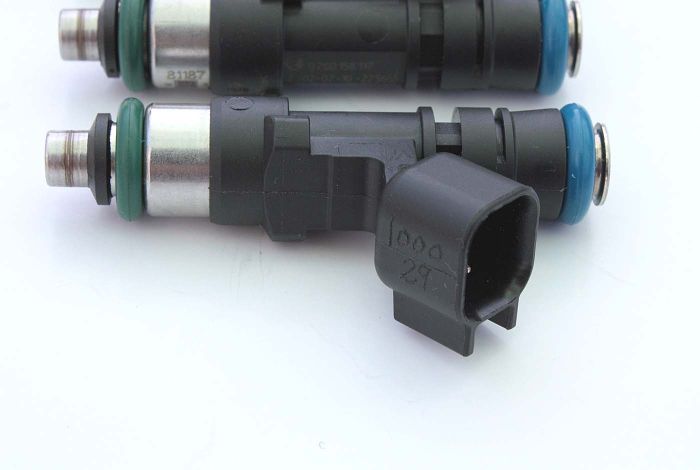

EV-14, 1000 cc/min Fuel Injectors - Flow-balanced and Matched

LIST PRICE INCLUDES A SINGLE (1) FUEL INJECTOR

See menu for available injector configurations for different applications:

  • Standard 14mm - The injector only (upper and lower 14mm o-rings)
  • Long 14mm - Injector with top-hat (upper and lower 14mm o-rings)
  • Standard 11mm - Subaru WRX (upper 11mm o-ring, lower 16mm seal)
  • Long 11mm - Mazda, Mitsubishi, etc. (upper 11mm o-ring, lower 16mm seal)
  • Honda B-series, also fits D and H series
  • Honda K-Series
  • Honda F-series, S2000

See menu for available connector options:

  • Plug-and-Play wired adapter
  • Plug-and-Play wireless adapter
  • Pigtails (solder to existing harness)
  • Connectors and pins (crimp to existing harness)


FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.

Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
The finished injectors are then flow tested and inscribed with a control number.
Flow data is recorded for each individual injector. The fuel injectors are then grouped into flow-matched sets ready for shipping.

FLOW CHART:  Flow-matched sets are sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.

SPECIAL NOTE TO OUR E85 USERS:
Ethanol based fuels tend to "dry" the fuel injector outlet orifices.
Users/tuners should be made aware that this may cause a "sticking" problem in fuel injectors that sit idle for a prolonged period of time.
It is suggested for applications running high ethanol content based fuels, to periodically incorporate into their fuel-system-maintenance a drop of light petroleum-based lubricant for each fuel injector.
This is also considered to be good maintenance, but not essential, for stainless steel based (Black-Ops Series) fuel injectors.
It should also be noted that for optimum performance the entire fuel system should be made up of ethanol approved materials including all fuel lines/fuel pump/fuel filter, etc.

More Information
Manufacturer FiveoMotorsport / Bosch
OEM or Aftermarket High Performance
Connector Type USCAR (EV6)
Flow Rate 1000cc
Impedance 12.5 Ohms
Part Number 055U1000, Universal Fit
