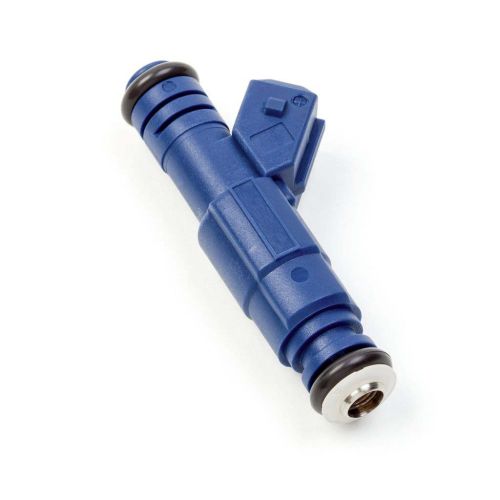

Gen III, EV6 Series Fuel Injector
Part Number:
024U320
Resistance:
14.5
Connector Type:
Jetronic (EV1)
Country Of Manufacture:
United States
High Performance
$74.95 (USD)
FiveoMotorsport, EV6 Series Fuel Injectors
|
Configuration: |
Top-Feed, US / Euro Fit, Long Length |
|
Application: |
Chevy LS1, LT1, LS6, Dodge, Ford, Jeep, Saturn, Audi, BMW, Porsche, VW, and more. |
|
Usage: |
Racing & Off-Road Motorsport Use |
EV6 fuel injector data:
- Many flow-rates available (see menu options)
- Stainless steel internal parts are compatible with all fuel types
- Individual dynamic testing at multiple pulse-widths
- Sets are Flow Balanced and Matched to within 1.0% (flow data report included)
- Linear performance throughout the pulse-width range for optimized idle and tuning
- Technical assistance and tuning data available
- 3-year, unlimited-miles warranty
- Direct Fit for many applications using EV1 style connector
- 4-hole delivery nozzle
Specs:
|
Fuel Pressure Range: |
Min. 3 Bar (43.5 psi) – Max. 7 Bar (101.5 psi) |
|
Flow Rates: |
Nominal flow rates measured in cc/min @ 3.0 Bar (43.5 psi) |
|
Minimum Pulse Width: |
1.0 ms |
|
Coil Impedance: |
High Impedance, 14.5 Ohms |
|
Fuel Compatibility: |
All fuel types |
|
Maximum Duty Cycle: |
95% |
|
Electrical Connector Type: |
Minitimer / EV1 |
|
Upper O-ring: |
14mm, Viton Material |
|
Lower O-ring: |
14mm, Viton Material |
| OEM or Aftermarket | High Performance |
|---|---|
| Connector Type | Jetronic (EV1) |
| Impedance | 14.5 |
| Part Number | 024U320 |
