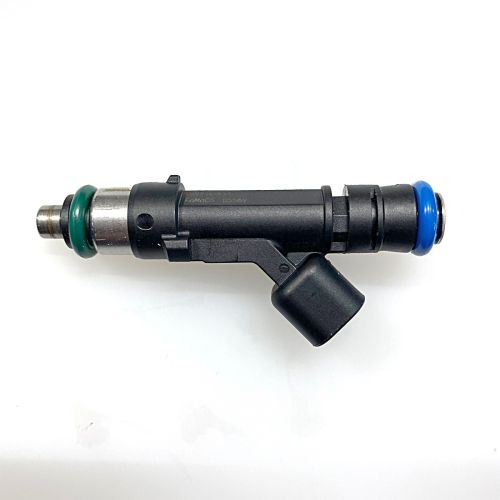

650cc EV14 U.S. Domestic Long; Ford Duratec 2.0, Focus RS, MX-5

You are purchasing a BRAND NEW Bosch 650cc/min, 62lbs/hr EV14 high flowing fuel injector.
This injector is fitted for the Ford 2.0 Duratec engine.

Price is for one (1) injector. Multiple injectors ordered will be placed in flow matched sets.

FLOW CHART: Each set is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3, 3.5, and 4 BAR at 15%, 50% and 100% for each injector, along with a complete dead time (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Flow matching was done with industry-standard equipment of the highest quality.
The test was performed at varying temperatures to achieve realistic results.

Our injectors are custom-manufactured from brand new American-made fuel injector "cores" in large-quantity batches to achieve the highest quality product. The resulting sets are all-fuels rated; including gasoline (MTBE), and E-85. The finished injectors are then flowed and inscribed with a control number. Data is recorded for each injector. They are then sealed and placed in matched sets ready for shipping.
You don't get this kind of technology from an OE injector.

This is a high performance, high volume fuel injector. The fuel delivery is from a 6-hole diffuser plate. Wide cone-shape spray pattern for maximum fuel atomization.

Body Design: Composite plastic

Injector type: EV-14, saturated

Flow rate: 62 lbs/hr at 43.5 psi. - 650 cc/min at 3 BAR

Length: 2-15/16 inches, 74 mm

Diameter: 9/16 inches, 14 mm

Orings: Top and bottom, Viton, 14.5 mm

Resistance: 12.5 Ohms

Electrical connector type: US-CAR
