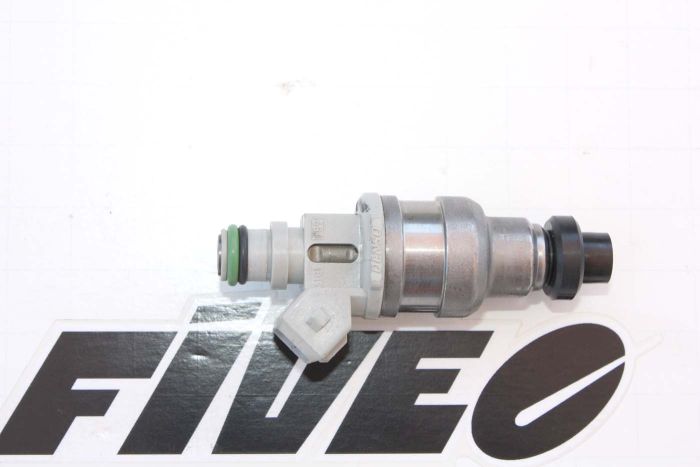

Denso 450cc, 42lbs/hr, Import Fit

Denso UPGRADE
Part Number: F87EM450
Flow Rate: Please select an option below
Resistance: 14.0 Ohms
Connector Type: Jetronic (EV1)
High Performance
$83.50 (USD)
Subtotal: $83.50

DENSO, HIGH-IMPEDANCE FUEL INJECTOR

  • FITS DSM/EV1 style electrical connector
  • Flow-matched 450 cc/min - high resistance
  • List price is for a single (1) fuel injector
  • Purchase multiple injectors, and receive a flow-balanced & matched set
  • Injector data included

This injector can be used for super street or racing applications.

  • New Viton o-rings/seals included for installation.

FLOW CHART: Delivered with a complete flow-data chart indicating individual dynamic and static flow rates at 3.0, 3.5, and 4.0 BAR. These injectors will maintain linearity throughout the test range of 15%, 50% and 100% duty cycle. Data also includes a complete dead time (latency) table.
Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.
Individual sets may flow differently than this set. But no set will ever vary more than +/- 1.0%


Mfg. P/N: F87EM450
Flow Rate: 450cc/min at 43.5 PSI (3 bar)
Latency (dead time): 0.500 ms at 14 volts (complete table included)
Resistance: 12.8-14.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Amperage: Peak 4.0 Amps/ Hold 1.5 Amps
Pressure: Min. 36 PSI (2.5 bar),  Max. 101 PSI (7 bar)

More Information
Manufacturer Denso UPGRADE
OEM or Aftermarket High Performance
Connector Type Jetronic (EV1)
Flow Rate Please select an option below
Impedance 14.0 Ohms
Part Number F87EM450
