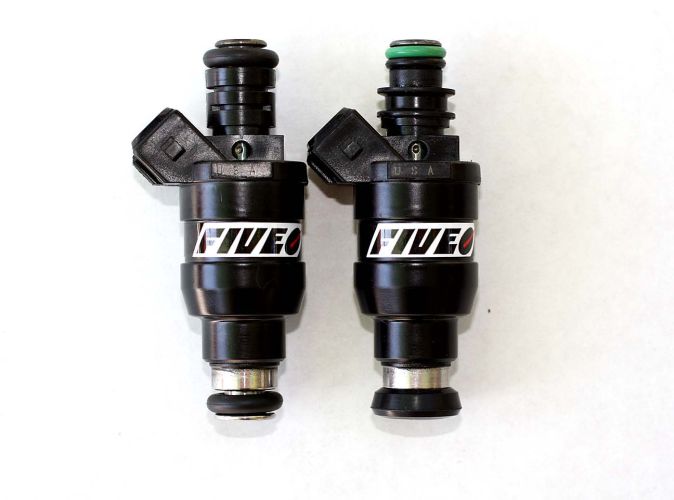

Lucas, 01D134B, 120 lbs/hr, 2.5 Ohms, Matched sets available
Lucas-Fiveo
Part Number:
01D134B, 01D136B
Flow Rate:
Please select an option below
Resistance:
2.5 Ohms
Connector Type:
Jetronic (EV1)
High Performance
$89.95 (USD)
Brand new genuine Lucas 120 lbs/hr fuel injectors, Made in U.S.A.
List price includes a single (1) fuel injector.
Can be fitted for US/Euro and Asian Imports - see menu options.
- US/Euro Fit: 14mm upper and 14mm lower o-rings
- Asian Import: 11mm upper o-ring and 16mm lower seal
Use this injector for normally aspirated and forced air induction, high horsepower applications
All fuels rated, E85 approved.
Injector Body Design: Steel and composite plastic
Flow rate: 120 lbs/hr 1260 cc/min at 43.5 psi (3 BAR)
Electrical connector type: Jetronic (minitimer, Bosch EV1)
Fuel delivery type: Ball and disc w/splitter nozzle, excellent fuel atomization
Length: 3 inches, 74 mm
Injector Body Diameter: 24 mm
Viton o-rings: Top and bottom, 14.5 mm
Low Resistance: 2.5 Ohms (peak and hold)
3 BAR, 14 volt dead time: 0.455 ms
(All fuel injector specifications meet or exceed the manufacturer's specification standard).
Note: This injector is a Pro-Tune part only and requires expert tuning knowledge. Does not delivery with a data sheet. No dead time/latency table. No high/low slopes, No offsets. No minimum or maximum pulse rates.
Manufacturer | Lucas-Fiveo |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | Jetronic (EV1) |
Flow Rate | Please select an option below |
Impedance | 2.5 Ohms |
Part Number | 01D134B, 01D136B |
