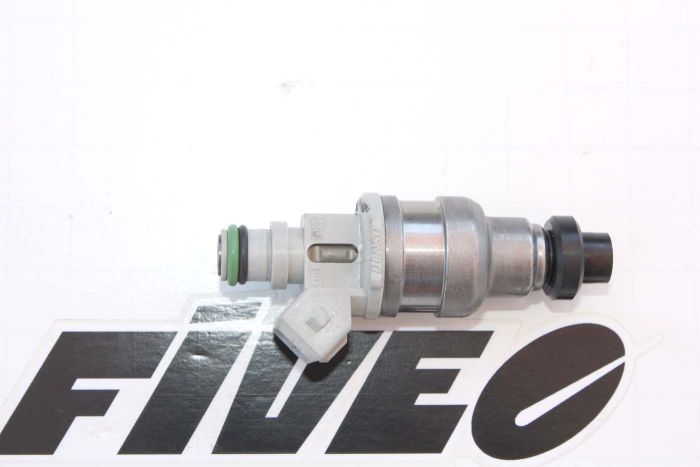

Denso 580cc, High-Z Fuel Injector, EV-1 Pigtail

Denso UPGRADE
Part Number: F87EM580 / Pigtail
Flow Rate: Please select an option below
Resistance: 14 Ohms
Connector Type: Jetronic (EV1)
OEM Upgrade
$91.50 (USD)
Subtotal: $91.50

USE FOR HIGHLY MODIFIED ENGINE - CAN BE USED WITH STOCK FUEL RAIL, FUEL PUMP AND ECU.

LIST PRICE INCLUDES: ONE (1) FUEL INJECTOR AND ONE (1) EV1 PIGTAIL.

Denso custom - FITS DSM/EV1 style electrical connectors.
Fow-matched 580cc - high resistance - fuel injectors.
This set can be used for super street or racing pplications.

  • All new Viton o-rings included for installation

  • Electrical connector pigtails included

FLOW CHART: Each set is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3.0, 3.5, and 4.0 BAR. Each set will maintain linearity throughout the test range of 15%, 50% and 100% duty cycle. Data also includes a complete dead time (latency) table.
Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.
Individual sets may flow differently than this set. But no set will ever vary more than +/- 0.5-0.75%

Fiveomotorsport is a respected name in high performance and racing parts.

Fiveo routinely test and retest samples from each shipment for quality control.
We do not provide flow data sheets.
Flow matching is labor intensive job that has been made part of this set to insure a quality set of fuel injectors.
Fiveomotorsport guarantees this set to be matched to within +/- 1.5% according to our specifications.


Fiveo's Exclusive Guarantee:
If you ever have an injector go outside spec or fail for any reason when functioning within the stated operating conditions, We will replace it with a brand new fuel injector.

Mfg. P/N: F87EDA575 (White top).
Flow Rate: 575cc/min at 43.5 PSI (3 bar)
Resistance: 12.8-14.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Amperage: Peak 4.0 Amps/ Hold 1.5 Amps
Pressure: Min. 36 PSI (2.5 bar),  Max. 101 PSI (7 bar)

More Information
Manufacturer Denso UPGRADE
OEM or Aftermarket OEM Upgrade
Connector Type Jetronic (EV1)
Flow Rate Please select an option below
Impedance 14 Ohms
Part Number F87EM580 / Pigtail
Year(s) 2016
Make MAZDA, MITSUBISHI
Model ECLIPSE, MIATA, MX-5 MIATA
Engine CLUB SPEC, L4, 2.0L, GAS, GRAND TOURING, L4, 2.0L, GAS, GST, L4, 2.0L, 4G63, F, Turbo, GAS, GSX, L4, 2.0L, 4G63, F, Turbo, GAS, L4, 1.6L, GAS, L4, 1.8L, GAS, L4, 2.0L, 4G63T, Turbo, GAS, L4, 2.0L, GAS, LS, L4, 1.8L, GAS, MAZDASPEED, L4, 1.8L, Turbo, GAS, SPORT, L4, 2.0L, GAS, SPYDER GST, L4, 2.0L, 4G63, F, Turbo, GAS, SPYDER, L4, 2.0L, 4G63T, Turbo, GAS, TOURING, L4, 2.0L, GAS
