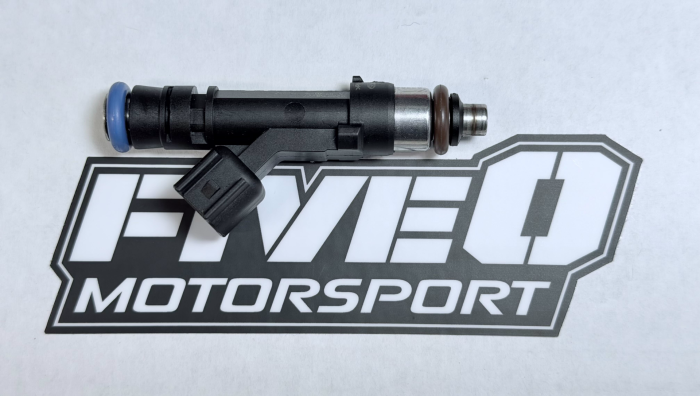

750cc Fiveomotorsport EV14 LONG - U.S. Domestic Fit fuel injectors
FIVEO CUSTOM
Part Number:
138U750 - LONG EV14 Bosch
Resistance:
12.5 Ohms
$89.50 (USD)
Custom Fiveomotorsport, Newest Technology EV14, 750cc/min High-Performance Fuel Injectors
Listed price is for a single injector
Delivered in Flow Matched Sets complete with all new o-rings read to install
USCAR electrical connector fittings
The injectors incorporate a single-hole disc fuel delivery nozzle with a wide cone for instant fuel atomization.
Flow rates:
We use Heptane as our testing agent).
72 lbs/hr, 750cc/min at 43.5 psi (3.0 bar)
78 lbs/hr, 818cc/min at 50.0 psi (3.5 bar)
84 lbs/hr, 885cc/min at 58.0 psi (4.0 bar)
Dead Time (latency): 0.667 ms at 14 volts
High resistance, no inline resistors or resistor box required for use.
All New-Generation EV14 fuel injectors will function at rail pressures in excess of 101 psi, 7 bar.
Excellent low pulse width response with predictable response down to 2ms.
Excellent atomization for modern multi-valve engines.
This set will require no more than a 1% trim for easy tuning.
Injector type: EV14, saturated
Fuel Delivery: Single-hole disc
Electrical Connector: U.S. CAR
Spray: Wide cone
Length: 3 inches, 74 mm
Diameter: 16 mm
O-rings: Top and bottom Viton, 14.5 mm
Resistance: 12.5 Ohms
Fuel Types: Gasoline, E10, E85
(All fuel injector specifications meet or exceed the manufacturer's specification standard).
Manufacturer | FIVEO CUSTOM |
---|---|
Impedance | 12.5 Ohms |
Part Number | 138U750 - LONG EV14 Bosch |
